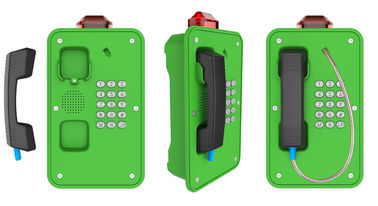

Corrosion Resistant Industrial Analog Telephone With Beacon And Aluminum Case

Brand Name:	J&R
Model Number:	JR103-FK-L
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Color:

Green, Yellow, Blue, Orange (or Optional)

Power Supply:

Phone Line Power

Warranty:

2 Years

Weather Resistant:

IP67

Size:

246 *339 *109 (mm)

Net Weight:

6 KG

Installation:

Wall/ Pillar Mounting

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

wall mount analog phone

weatherproof analog phone

Aluminum Case Industrial Analog Telephone

Product Description

Corrosion Resistant IP67 Analogue Telephone with Beacon for Mining, Tunnel, Power Station

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.

This weatherproof telephone is based on a Aluminum alloy die-casting body and provide a clear loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.

Main Features:

Standard Analogue phone
Aluminum alloy die-casting body
Vandal resistant handset and armored cord
Weather proof protection to IP67
With LED lamp fixed on the top, when there is a incoming call, the lamp will flashing
Phone line powered (Analogue)
Wall/ Pillar mounting, simple installation
Full keypad with memory
Inductive coupler fitted as standard for hard of hearing
CE, FCC, ISO9001, RoHS compliant

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Technical Specification

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Package
Unit Size: 339*246*109mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG
