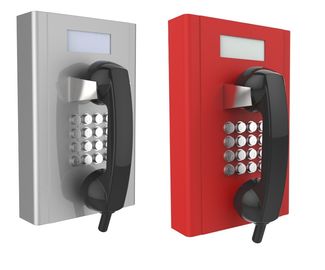

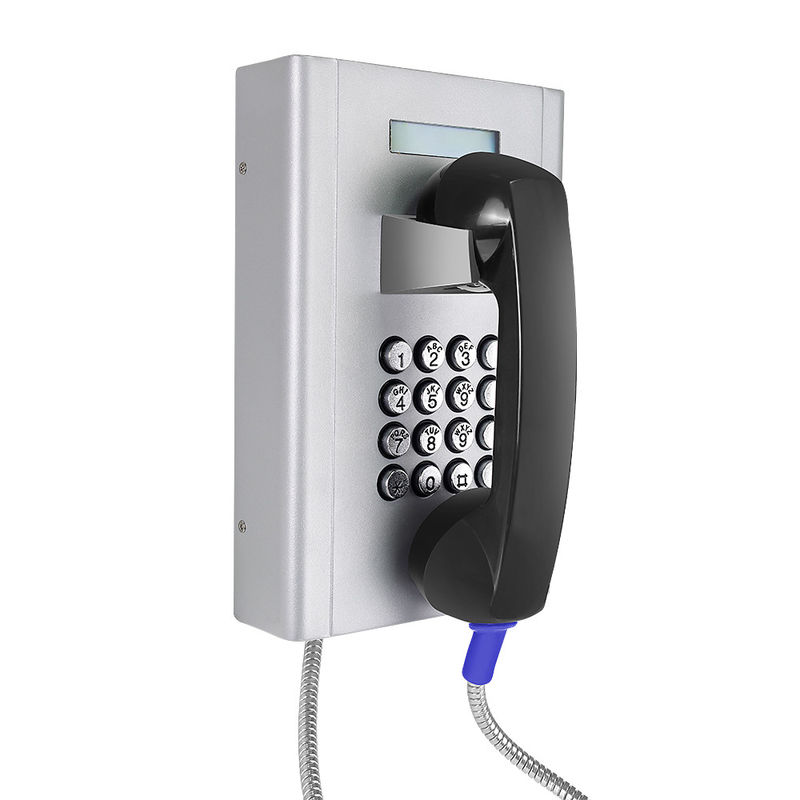

Customized Grey Or Red Heavy Duty Analog / SIP Phone With LCD Display

Customized Grey Or Red Heavy Duty Analog / SIP Phone With LCD Display

Brand Name:	J&R
Model Number:	JR204-FK
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Weather Protection:

IP55-IP65

Color:

Grey Or Red

Full Keypad:

Yes

Dimension:

250 *160 *123 (mm)

Armored Cord:

Yes

Magnetic Hook:

Yes

Warranty:

2 Years

Material:

Cold Rolled Steel

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

vandal resistant phone

vandal proof intercom

Product Description

Anti-vandal Analog Telephone with LCD display for Bank, Rugged Industrial Telephones support Customzied

This Vandal Resistant Telephone with armored cord is housed in robust steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

MAIN FEATURES

- Standard Analogue phone, available for SIP, GSM/3G version

- Robust housing, constructed of cold rolled steel

- Weather proof protection up to IP55-IP65

- Vandal resistant handset with Magnetic hook

- Telephone line powered (Analog )

- External Power supply or PoE powered (SIP)

- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing

- Full Rugged & metal keypad

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory

- On-wall mounting, simple installation

- CE, FCC, RoHS, ISO9001 compliant

APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

TECHNICAL PARAMETERS

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle: 1.5W -Active: 1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

PACKAGE

unit size: 250 *160 *123 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3.5 KG

Gross weight: 4 KG
