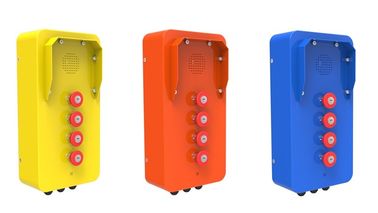

Rugged Waterproof Emergency Phone Marine Intercom Anti Moisture For Shipboard

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR316-4B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Color: Orange, Yellow, Blue
Weather Protection: IP65 Power Supply: Phone Line Powered
Warranty: 2 Years Button: 4 Buttons
Unit Size: 400 *200 *130 (mm) Weight: 7 KG
High Light:

weather resistant telephone


outdoor weatherproof telephones

Product Description

Rugged Marine Weatherproof Intercom, IP67 Moisture Resistant Shipboard Analog Phone


As a weatherproof intercom, it is fully contained within a corrosion resistant cast weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


The weatherproof call station JR316-4B with four-wire technology is designed for use in harsh environments. The housing is resistant to many chemicals and can be used in a range of temperatures from -30 °C to +70 °C.




- Standard VoIP/SIP phone
- Robust construction, Vandal resistant
- Handsfree Operation,with 4 big mushroom call buttons
- Comes standard with built-in 25 Watt booster amplifier

- Weatherproof design (protection rating IP65)
- Large temperature range (-40 °C to +70 °C)
- Resistant to many chemicals,Flame resistant
- Tamper resistant fixings
- Simple installation

- Fast-fit terminal connection
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Available for wall mounting type and pillar mounting type
- CE, FCC, ROHS compliant




This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.





SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C




Unit size: 400 *200 *130 (mm)

Carton size: 200*300*440 (mm)

Packaging materials: pearl cotton, carton

Gross weight: 7 KG

Net weight: 6 KG
