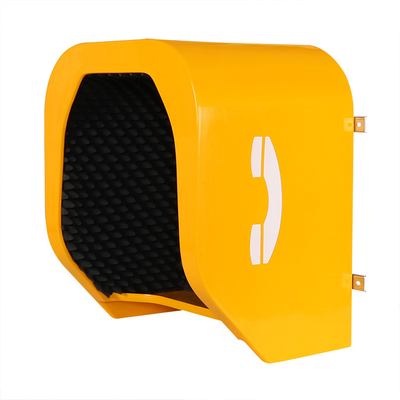

Impact Resistant Acoustic Telephone Booth , Fireproof Anti UV Wall Phone Booth

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE,FCC, RoHS, ISO9001
Model Number: JR-TH-01
Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Pearl cotton, Wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Detail Information
Material: Fiberglass Reinforced Polyester (GRP) Noise Attenuation: -24dB (SPL)
Size: 780 * 680 * 500 (mm) Color: Blue, Yellow, Orange, Or Optional
Application: Both Indoors, Outdoors, Off-Shore & On-Shore Packaging Materials: Pearl Cotton, Wooden Box
Net Weight: 25 KG Installation: Wall Mounting
Vandal Resistant: Yes Fire Retardant: Yes
High Light:

soundproof phone booth

,

wall mounted telephone booth


Product Description

Impact Resistant Noise-reduction Phone Hood for Noisy Areas

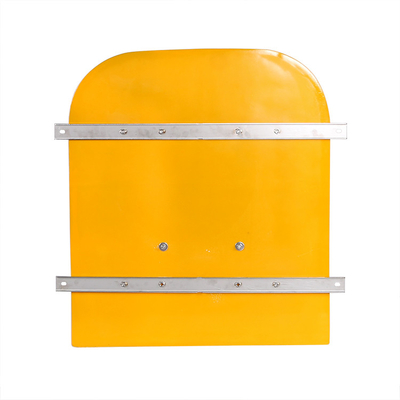

The acoustic hood is fixed to the wall via two stainless steel mounting brackets that are secured through the hood's back wall to the inner telephone apparatus plate. This enables a load of up to 60 kgs to be safely mounted on the plate. The plate is pre-drilled to accept many telephones.



The Acoustic Booth made of fiberglass reinforced polyester(GRP), expecially designed for installation in corrosive industrial and marine areas, Off-Shore & On-Shore, with non hygroscopic sound absorbing filling material, attenuation up to -24dB(SPL).It can be used both indoors, outdoors.





MAIN FEATURES

• Polyethylene plastic construction

• Polyethylene material flammability

• Durable, lightweight, chemical tesistant body

• Excellent low temperatures impact properties

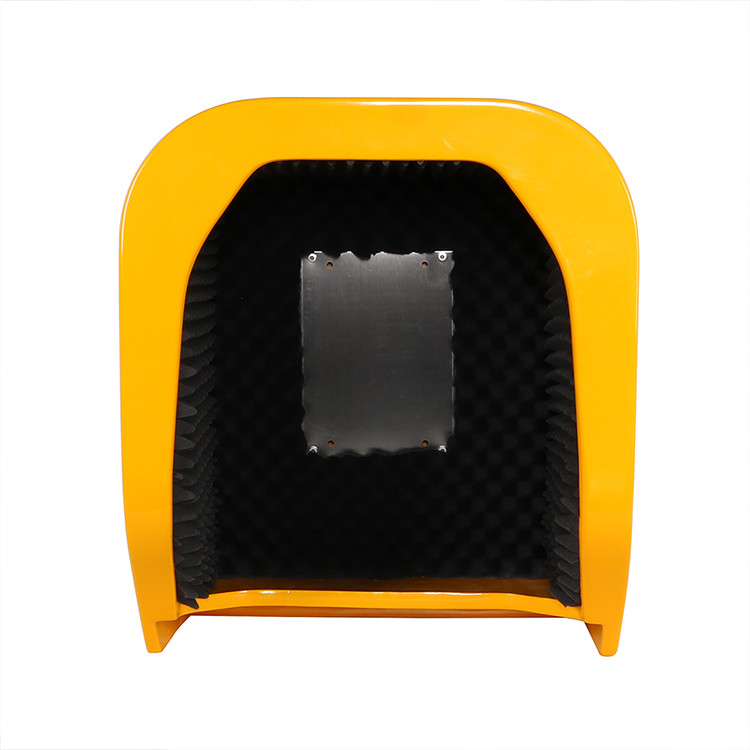

• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.

• Completely maintenance free and corrosion resistant, impervious to chemical attack

• Can be used both indoors, outdoors and offshore

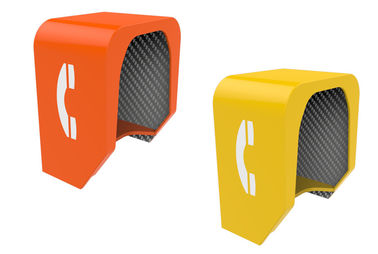

• Standard color- Yellow



• Optional colors available upon request

• Special shape for higly noisy areas

• High acoustic insulation characteristics -24dB

• Designed for corrosive and saline atmosphere



• UV resistant and suitable for harsh environment

• Easy fixing system

• Suitable for heavy industrial telephones (up to 60 kg)

• Pass-trough hole on the shelf for cables inlet

• Fire Retardant





APPLICATIONS

This phone booths have been widely used in Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.



Impact Resistant Acoustic Telephone Booth , Fireproof Anti UV Wall Phone Booth 0

Product Name  Acoustic Telephone Booth
Model No.  JR-TH-01
Materials  Fiberglass reinforced polyester (GRP)
Size  780 * 680 * 500 (mm)



PACKAGE

Size of Acoustic Phone Booth: 780 * 680 * 500 (mm)

Net weight: 23 KG

Packaging materials: Pearl cotton, Wooden box

Packaging Dimensions: 920 *810 *570 mm

Gross weight: 43 KG



Impact Resistant Acoustic Telephone Booth , Fireproof Anti UV Wall Phone Booth 1

Impact Resistant Acoustic Telephone Booth , Fireproof Anti UV Wall Phone Booth 2
