Anti Vandal Yellow Industrial Weatherproof Telephone With Post And Key Lock

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR-TP-02
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Pillar Material: Cold Rolled Steel Phone Material: Aluminum Alloy
Warranty: 2 Years Weather Protection: IP67
Color: Yellow (or Optional) Vandal Resistant: Yes
Unit Size: 1500 X 300x 300 Mm Weight: 20 KG
High Light:

weather resistant telephone

,

outdoor weatherproof telephones

,

Yellow Industrial Weatherproof Telephone


Product Description

Anti-vandal IP67 Weatherproof SOS Telephone Post with Key Lock for Outdoor



The Emergency Telephone with column mounting is designed to meet the needs of clients who experience loss through vandalism.



It is based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times. It is an ideal security solution for remote and high-risk areas.





MAIN FEATURES

- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body for phone

- Cold rolled steel for pillar

- Weather proof protection to IP67


- Vandal resistant handset and armored cord
- Full keypad with memory
- Pillar mounting, simple installation



- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant





APPLICATIONS

Ideal for Campus, School, Street, Railway Trackside, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Hotels, Guard Stations, Police stations, Stadiums, inside and outside building etc.





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C







Package Information

Weight:10-45kg
Dimensions(mm):1500 x 436 x 306 mm or customized by clients
Packaging materials: pearl cotton, carton, wooden box

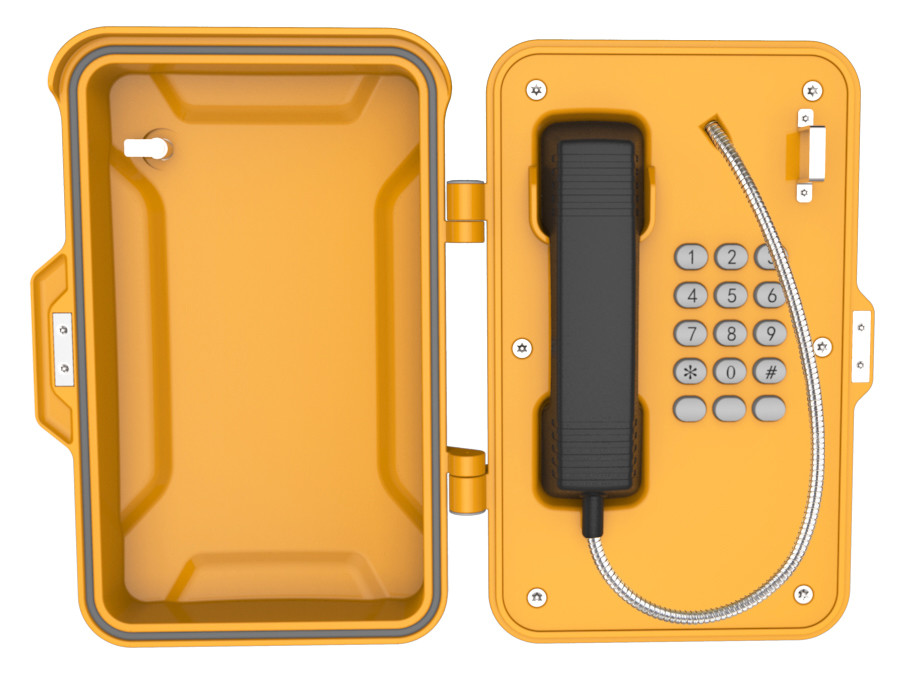

Anti Vandal Yellow Industrial Weatherproof Telephone With Post And Key Lock 0
