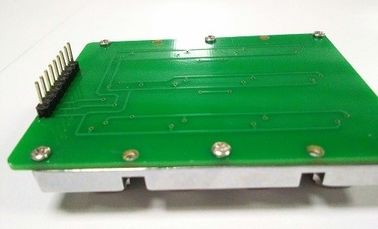

Zinc Alloy Rugged Blue Backlight 12 keys Keypad with 9 Pin

Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin
Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin

Large Image :  Zinc Alloy Rugged Blue Backlight 12 keys Keypad with 9 Pin

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, RoHS
Model Number: JR-KP-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-3 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Zinc Alloy Keys: 12-key
Connector: 9-pin Life Span: >500 Thousand Hits
Weight: About 0.4 KG Warranty: One Year
With Backlight: Yes Anti-vandal: Yes
High Light:

telephone hook switch

,

outdoor telephone enclosure

Rugged 12-key Keypad with Blue Backlight, 9-pin Keyboard for Door Phone





Model Number: JR-KP-03





Main Features

- Special engineering plastic frame,Chrome key made of zinc alloy. Vandal resistance
- Conductive rubber made of natural silicone
- Waterproof,corrosion resistance, Ageing resistance
- Double-sided board, Good for contact of goldfiger
- Includes 9-pin connector
- With LED backlight for dim environment
- Includes twelve standard keypad buttons





Technical parameters

Key Lifespan >500 thousand actuations

Key Travel: 0.45mm

LED Power supply voltage: 3V





Environmental adaptability

Operating temperature   -25°C to +65°C
Storage temperature   -30°C to +70°C
Operating RH   30-90%
Protection Level   IP56 (front panel)





Drawing

Zinc Alloy Rugged Blue Backlight  12 keys Keypad with 9 Pin 0
