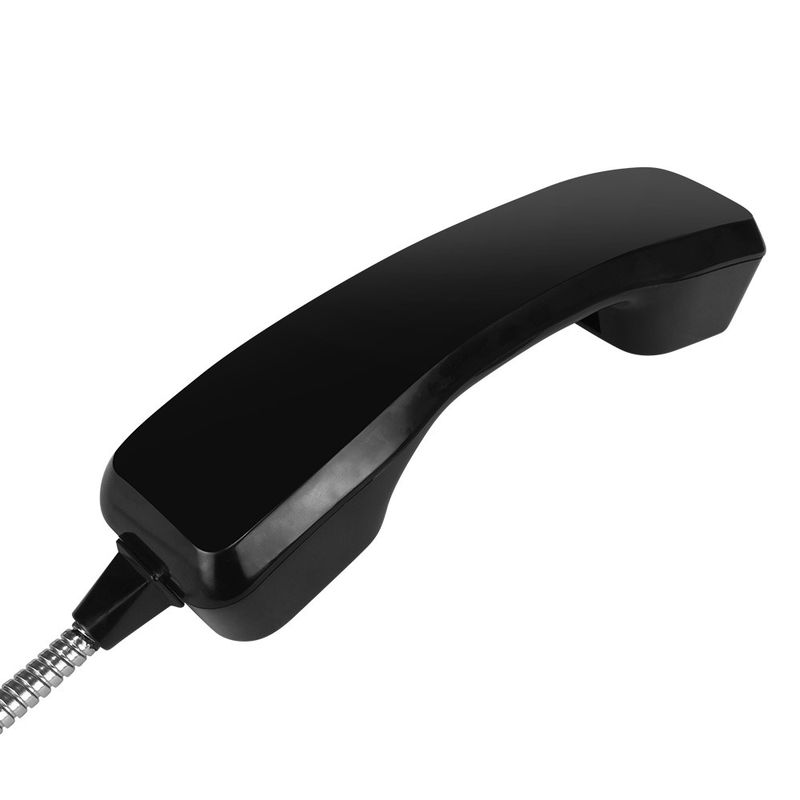

Industrial Telephone Handset, Replacement Handset with Receiver for Emergency Phone

Name: Industrial Telephone Handset, Replacement Handset with Receiver for Emergency Phone
Brand: J&R Technology Limited
SKU: JR-HS-02
Price: 1,451.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR-HS-02
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS

Handset Material:

High Quality PC Or ABS Material

Cord Material:

Stainless Steel Spiral Cord

Handle Tensile Strength:

>180kg

Weight:

About 0.5 KG

Handset Receiver:

M150H (95~97 Db) / 150 Ω

Transmitter (microphone):

Electret Type SG9767 (33-35 Db) / 2.2KΩ

Cord Lengths:

83 Cm (could Be Customized)

Color:

Black

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

outdoor telephone enclosure

stainless steel keypad

PC ABS Industrial Telephone Handset

Product Description

Rugged Telephone Handset with 83 cm of Armored Cord, Vandal Resistant Phone Handset

Model Number: JR-HS-02

FEATURES

- Handset handle and cap material: PC/ABS
- Handset type: Standard Receiver
- Wiring: Four 24 gauge insulated wires (2 for receiver, 2 for transmitter)

- Armored Cord Assembly.: 304 Stainless Steel
- Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 200 kgs
- Available Cord Lengths: 83 cm (could be customized)

Handset Microphone specification

Item:	Electret Condenser Microphone
Model Number:	Microphone SG9070
Frequency range	100－8000Hz
Sensitivity	56±2 dB
Output Impedance	Low Impedance
Directivity	Unidirectional
Standard operation voltage	4.5V
Sensitivity reduction	Within -3dB at 1.5V
Current consumption	Max 0.5mA
Operation Temperature	-30℃ to +70℃
Storage Temperature	-40℃ to +85℃
Weight	Less than 1.0g

Handset receiver specification

RECEIVER
Model Number:	R3518M150H
ITEMS	SPECIFICATIONS	CONDITIONS
IMPEDANCE	150 ± 20% ohm ( at 1 KHz,60mV input )
SOUND PRESSURE LEVEL	97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa ) Input 60mVrms, with B&K artificial ear 4153
INPUT POWER (NOM./MAX.)	0.03W /0.25W 0.03W / 0.25W
HARMONIC DISTORTION	≤5%	300＜f≤3400Hz
OPERATING TEMPERATURE	-30°C to +70°C
NET WEIGHT	APPROX. 35.0gram
