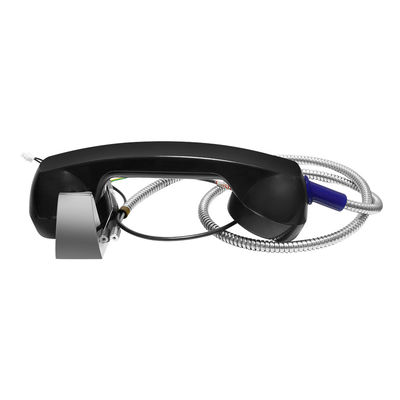

ABS Material Corded Phone Handset / Basic Telephone Handset With Armored Cord

ABS Material Corded Phone Handset / Basic Telephone Handset With Armored Cord

Brand Name: J&R
Model Number: JR-HS-01S
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS
Material:
ABS Material
Color:
Black, Red
Handle Tensile Strength:
>180kg
Weight:
About 0.5 KG
Handset Receiver:
M150H (95~97 Db) / 150 Ω
Transmitter (microphone):
Electret Type SG9767(33-35 Db) / 2.2KΩ
Cord Lengths:
83 Cm (or Customized)
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

telephone hook switch

,

stainless steel keypad

,

ABS Corded Phone Handset

Product Description

Rugged Replaceable ABS Material Telephone Handset with Armored Cord





Model Number: JR-HS-01S





FEATURES

- Handset handle and cap material: PC/ABS
- Handset type: Standard Receiver
- Wiring: Four 24 gauge insulated wires (2 for receiver, 2 for transmitter)
- Armored Cord Assembly.: 304 Stainless Steel


- Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 200 kgs
- Available Cord Lengths: 83cm (could be customized)





Drawing

ABS Material Corded Phone Handset / Basic Telephone Handset With Armored Cord 0



Handset Microphone specification



Item:   Electret Condenser Microphone
Model Number:   Microphone SG9070
Frequency range   100-8000Hz
Sensitivity   56±2 dB
Output Impedance   Low Impedance
Directivity   Unidirectional
Standard operation voltage   4.5V
Sensitivity reduction   Within -3dB at 1.5V
Current consumption   Max 0.5mA
Operation Temperature   -30℃ to +70℃
Storage Temperature   -40℃ to +85℃
Weight   Less than 1.0g







Handset receiver specification



RECEIVER
Model Number:   R3518M150H
ITEMS   SPECIFICATIONS CONDITIONS
IMPEDANCE   150 ± 20% ohm ( at 1 KHz,60mV input )
SOUND PRESSURE LEVEL

  97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa )

  Input 60mVrms, with B&K artificial ear 4153

INPUT POWER (NOM./MAX.)

  0.03W /0.25W

  0.03W / 0.25W

HARMONIC DISTORTION   ≤5% 300<f≤3400Hz
OPERATING TEMPERATURE   -30°C to +70°C

NET WEIGHT

  APPROX. 35.0gram
