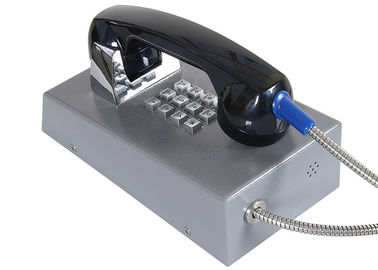

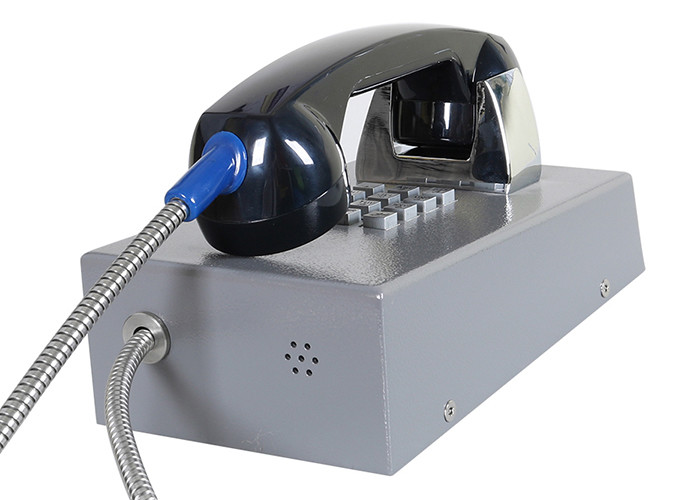

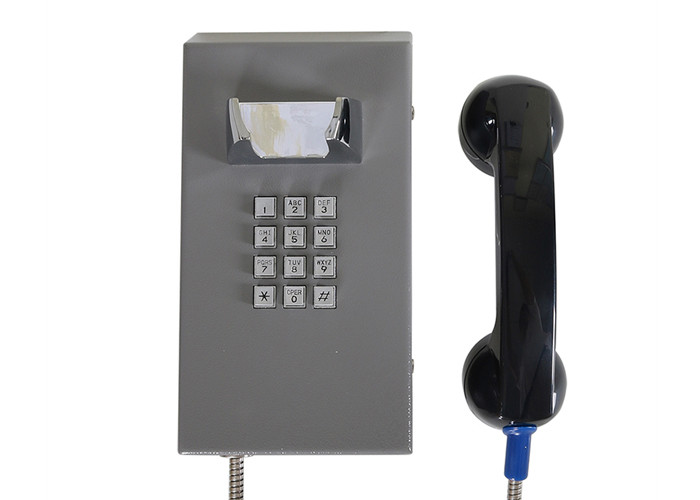

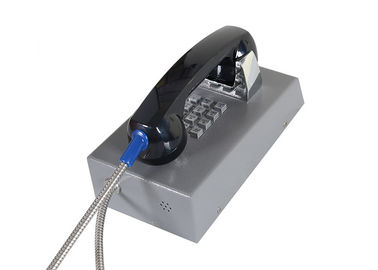

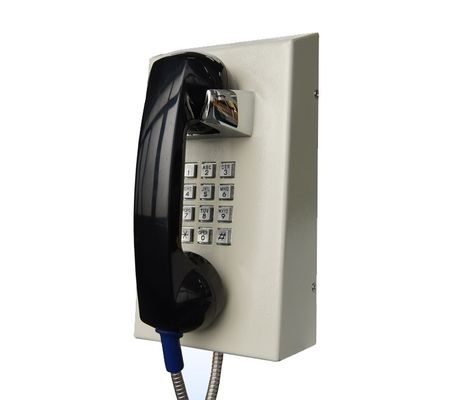

Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset

Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset
Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset

Large Image :  Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK-White

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Cold Rolled Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Metal Keypad: Yes Size: 247 *130 *132 (mm)
Weight: 3 KG Customized: Support
High Light:

vandal proof telephone

,

vandal proof intercom

Vandal Resistant Inmate Telephone with Rugged Handset for Prisoner

This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.


MAIN FEATURES
- Standard Analogue phone,available for SIP/GSM/3G phone
- Robust housing, constructed of cold rolled steel
- Weather proof protection up to IP55-IP65
- Vandal resistant handset with 83cm armored cord

- Full Rugged & metal keypad
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- On-wall mounting, simple installation

- Telephone line powered (Analog version )
- External Power supply or PoE powered (SIP version)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant



 APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




PACKAGE
Unit size: 247 *130 *132 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 3 KG
Gross weight: 4 KG

Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset 0


Grey Corrosion Resistance Vandal Proof Telephone With ABS Material Handset 1
