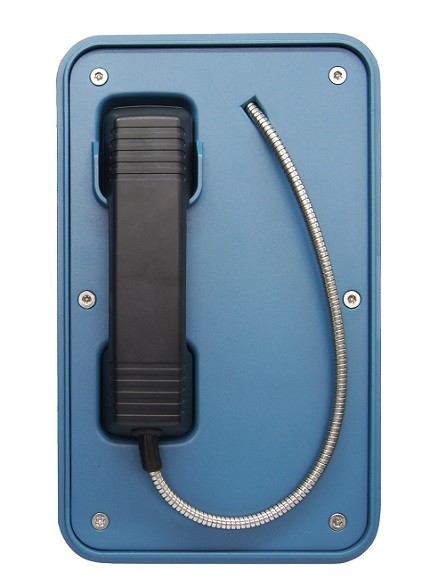

Blue / Yellow Weather Resistant Telephone Emergency Intercom For Power Station

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, IP67, ISO9001:2015

Model Number: JR101-CB

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 3-7 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Material:
Aluminum Alloy
Color:
Blue, Yellow (or Optional)
Version:
Analog, VoIP, GSM/3G
Weather Resistant:
IP67
Warranty:
2 Years
Size:
246 *339 *109 (mm)
Net Weight:
6 KG
Installation:
Wall/ Pillar Mounting
Material:
Aluminum Alloy
Color:
Blue, Yellow (or Optional)
Version:
Analog, VoIP, GSM/3G
Weather Resistant:
IP67
Warranty:
2 Years
Size:
246 *339 *109 (mm)
Net Weight:
6 KG
Installation:
Wall/ Pillar Mounting
Product Description

Impact Resistant Power Station Intercom, Weatherproof Tunnel Telephone




Main Features:
- Standard Analog, VoIP, or GSM/3G phone

Wall/ Pillar mounting, simple installation

Aluminum alloy die-casting body
Vandal resistant handset and armored cord



- Weather proof protection to IP67

- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone



Programmable for auto-dial

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, ISO9001, RoHS compliant





Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.





Technical Parameters

SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle:1.5W
 -Active:1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



3G Version
Power Supply  12V DC
Power Consumption  -Idle:0.3W
 -Active: 1.5W
Communication Type  Full duplex
Ringer volume  90~95dB(A) at a distance of 1 m
Program Method  Remote programming by SMS
Frequency

 A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





Package

Unit Size:    339*246*109 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    5 KG
Gross weight:    6 KG
