| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR208-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP65 | Installation Type: | Flush Mounting |
| Communication Type: | Full Duplex | Auto-dial: | Yes |
| Armored Cord: | Yes | Dimension: | 190*280*124(mm) |
| High Light: | vandal resistant phone,vandal proof intercom |
||

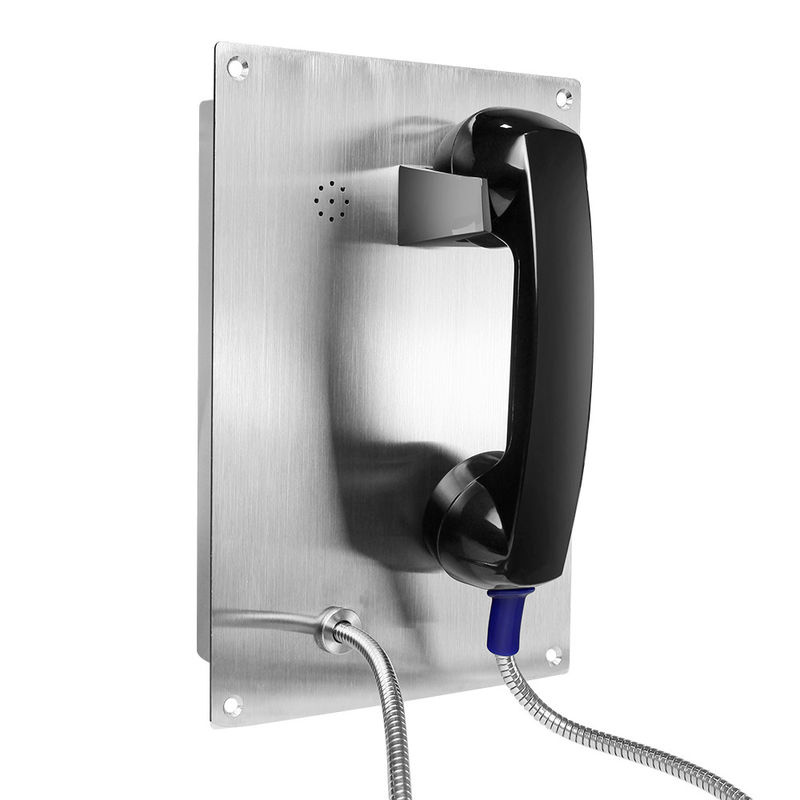

Anti-vandal flush mounting Auto-dial Telephone for Parking Lots with Rugged Handset
The Flush Emergency Phone Auto-Dial Handset Telephone is based on a stainless steel faceplate and provide a loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue phone or VoIP phone
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Flush mounting, simple installation
- Weather proof protection from IP55 to IP65
- Programmable for auto-dial, easy to operate
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External Power supply or PoE for SIP phone
- RJ45 port for SIP phone
- CE, FCC, ISO9001, RoHS compliant
TECHNICAL PARAMETERS
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
