| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-CB-L |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Color: | Yellow, Blue, Red, Orange (or Optional) |
|---|---|---|---|
| Version: | Analog, VoIP, GSM/3G | Weather Resistant: | IP67 |
| Installation: | Wall/ Pillar Mounting | Size: | 246 *339 *126 (mm) |
| Net Weight: | 7 KG | Warranty: | 2 Years |
| Handsfree: | Yes | Vandal Resistant: | Yes |
| Highlight: | weatherproof telephone box,outdoor weatherproof telephones |
||

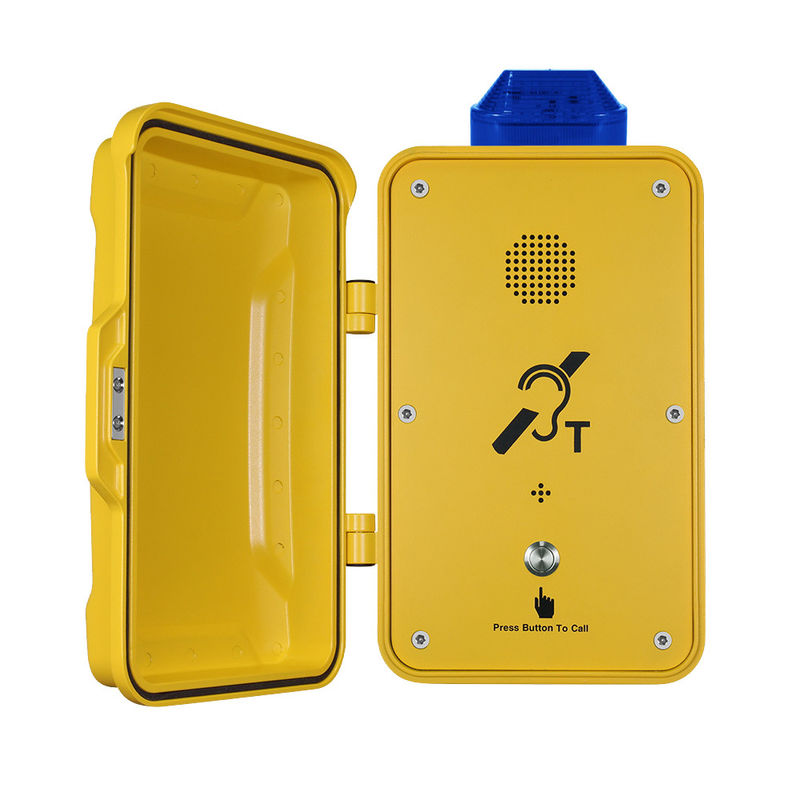

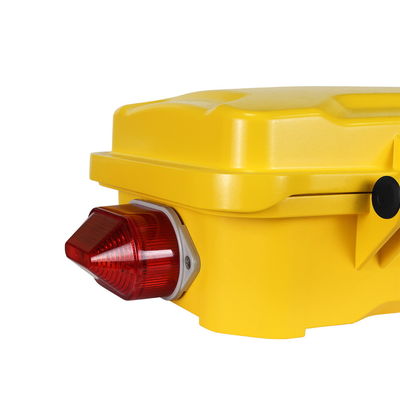

Moisture Resistant Industrial Auto-dial Emergency Telephone with Warning Lamp
The JR100 series SIP telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
Main Features:
- Standard Analog/SIP/ GSM/3G phone
- Corrosion Resistant Aluminum Enclosure
- Robust and Weather-resistant up to IP67
- Handsfree operation, Programmable for auto-dial
- Microphone: Noise cancelling dynamic mic, proven in noisy areas
- Built in Ringer, which provides penetrating calling signal
- Heavy Duty Performance: Impact, shock, fall and vibration proof, able to perform in difficult environments
- Wall/ Pillar mounting, simple installation
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Applications
This handsfree weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Package
| Unit Size: | 339*246*126 mm (H *W * D) |
| Carton Dimension: | 200 * 300 *440 mm (H * W * D) |
| Packaging materials: | pearl cotton, carton |
| Net Weight: | 6 KG |
| Gross weight: | 7 KG |
