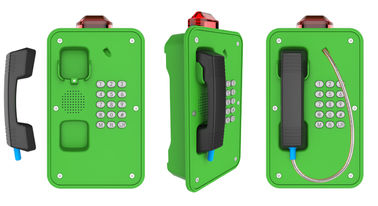

Green Industrial Weatherproof Telephone , Tunnel / Marine Waterproof Intercom

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR103-FK-L
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Weather Resistant: IP67
Version: Analog, SIP, GSM/3G Color: Green, Yellow, Orange (or Optional)
Installation: Wall/ Pillar Mounting Size: 246 *339 *109 (mm)
Net Weight: 6 KG Warranty: 2 Years
High Light:

weather resistant telephone


weatherproof telephone box

Product Description

Weatherproof Intercom with Lamp for Marine, Corrosion Resistant Tunnel Telephone


This mositure resistant telephone is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



Main Features:
- Available in 3 versoins (AnalogSIP/ VoIP, and GSM/3G)

- Corrosion Resistant Aluminum Enclosure

- Robust and Weather-resistant up to IP67


- Handset: Robust handset with armored stainless steel cord

- Hook-switch: Magnetic with no mechanical moving parts

- Microphone: Noise cancelling dynamic mic, proven in noisy areas

- Waterproof Full Keypad with Memory


- Built in Ringer, which provides penetrating calling signal

- Heavy Duty Performance: Impact, shock, fall and vibration proof, able to perform in difficult environments

- With LED lamp fixed on the top, when there is a incoming call, the lamp will flashing

Wall/ Pillar mounting, simple installation


- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone


- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant





Idead for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc. where require very reliable telephony under adverse conditions.




Technical Parameters

SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle:1.5W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)


Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C

Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG
