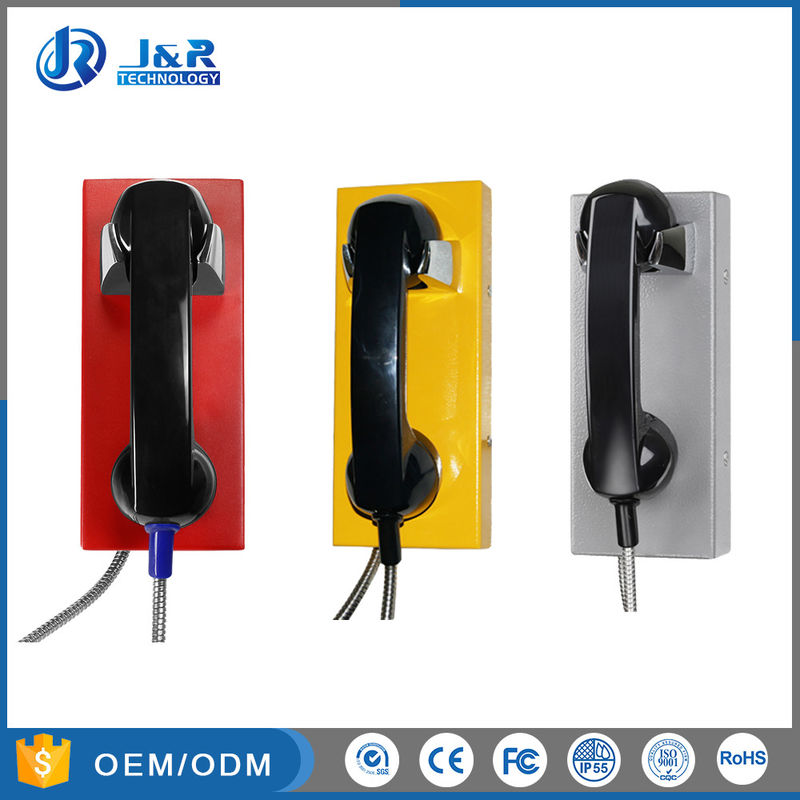

Auto Dial Vandal Resistant Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR202-CB
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Auto-dial: Yes Powered: Telephone Line
Vandalproof: Yes Hook Switch: Mechnical / Magnetic Hook
Color: Yellow,Red,Grey Material: Cold Rolled Steel
Dimenstion: 240 *100 *106(mm) Steel Armored Cord: Yes
Application: Elevator,Apartment,Bank Other Public Area Hotline: Yes
High Light:

vandal proof telephone


vandal proof intercom


Parking Lot Vandal Resistant Telephone

Product Description

Rugged Auto-Dial VoIP Emergency Telephone with PoE for Parking Lot


Housed in cold rolled steel and manufactured to a high standard, this Auto Dial Telephones offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install.


The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.




- Standard SIP phone

- Robust housing, constructed of stainless steel

- Vandal resistant handset and armored cord


- Wall mounting, simple installation

- Weather proof protection: up to IP65

- Programmable for auto-dial


- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliance




Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.


Auto Dial Vandal Resistant Telephone 0



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





unit size: 240 *100 *106 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 2 KG

Gross weight: 3 KG

Auto Dial Vandal Resistant Telephone 1

Auto Dial Vandal Resistant Telephone 2
