Moisture Resistant Industrial Telephone for Tunnels, Mining, Marine, etc.

Brand Name:	J&R
Model Number:	JR103-FK
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Weather Resistant:

IP67

Color:

Yellow, Blue, Red, Orange (or Optional)

Version:

Analog, SIP, GSM/3G

Warranty:

2 Years

Size:

246 *339 *109 (mm)

Net Weight:

6 KG

Installation:

Wall/ Pillar Mounting

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

weather resistant telephone

outdoor weatherproof telephones

Product Description

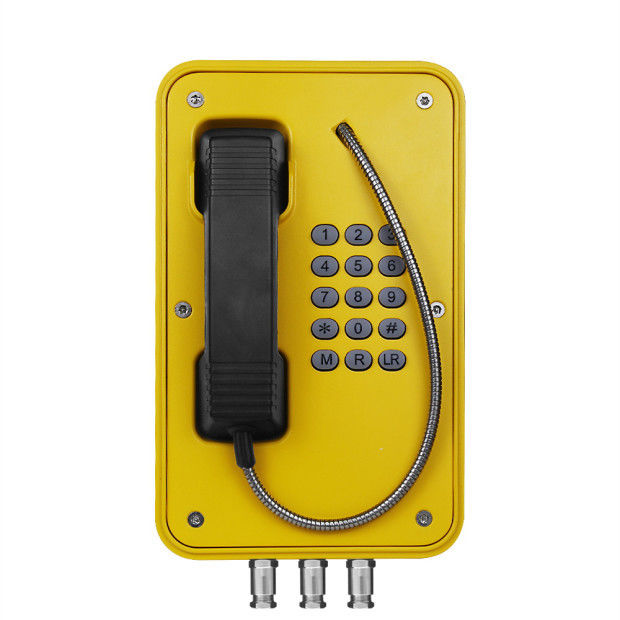

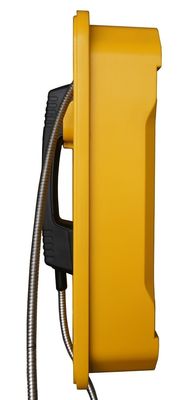

Vandal Resistant Watertight Marine Intercom, Moisture Resistant Tunnel Telephone

This mositure resistant telephone is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Idead for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc. where require very reliable telephony under adverse conditions.

Main Features:
- Available in 3 versoins (Analog, SIP/ VoIP, and GSM/3G)
- Robust housing, constructed of Aluminum alloy
- Vandal resistant handset and armored cord
- Weather proof protection to IP67

- Wall/ Pillar mounting, simple installation
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button
“LR” button for last number redial
“R” for flash recall
“M” for muting

- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant

Technical Parameters

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Package
Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG

Moisture Resistant Industrial Telephone for Tunnels, Mining, Marine, etc. 0

Moisture Resistant Industrial Telephone for Tunnels, Mining, Marine, etc. 1
