| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR206-FK-L |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Armored Cord: | Yes | Warranty: | 2 Years |
|---|---|---|---|
| Keypad: | 12-key Rugged Keypad | Brand: | J&R |
| Vandalproof: | Yes | Communication Type: | Full Duplex |
| Weatherproof: | IP65 | Material: | Cold Rolled Steel |
| Color: | Red | ||
| High Light: | vandal resistant phone,vandal proof intercom |
||

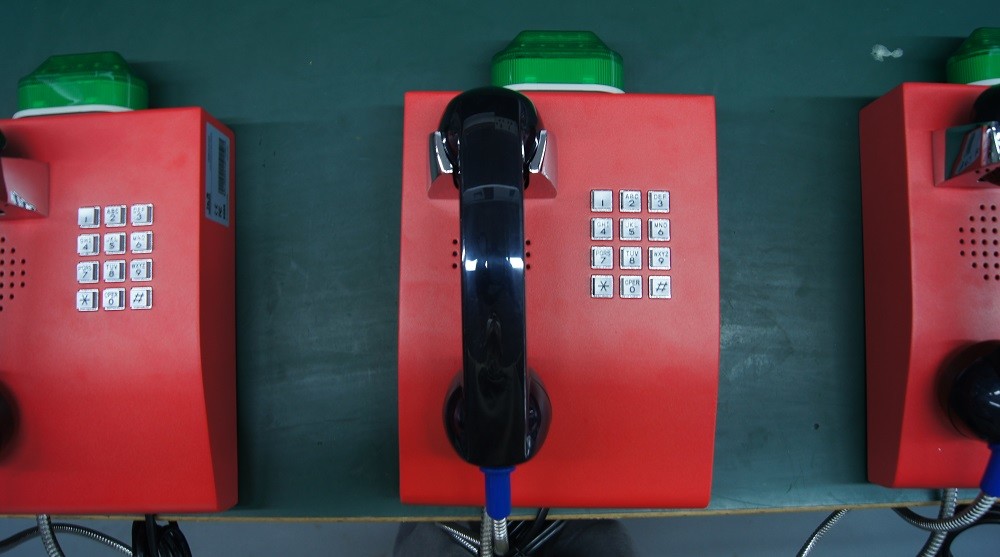

Rugged Industrial Telephone with Flashing Lamp, Anti-vandal Tunnel Telephone
This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box with beacon fixed to top and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
MAIN FEATURES
- Standard Analogue phone,available for SIP version
- Robust housing, constructed of stainless steel
- With volume control button
- Weather proof protection up to IP65
- Vandal resistant handset with armored cord
- Full Rugged & metal keypad
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- On-wall mounting, simple installation
- Telephone line powered (Analog version )
- External Power supply or PoE powered (SIP version)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
PACKAGE
unit size: 248 *185 *129 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2.5 KG
Gross weight: 3.5 KG
