| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR207-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Red |
|---|---|---|---|
| Weatherproof: | IP55-IP65 | Handset: | Rugged ABS Material |
| Keypad: | 16-key Metal Keypad | Warranty: | 2 Years |
| Application: | Prison, Factory, Bank, Hospitals, Etc. | Brand: | J&R |
| High Light: | vandal resistant phone,vandal proof telephone |
||

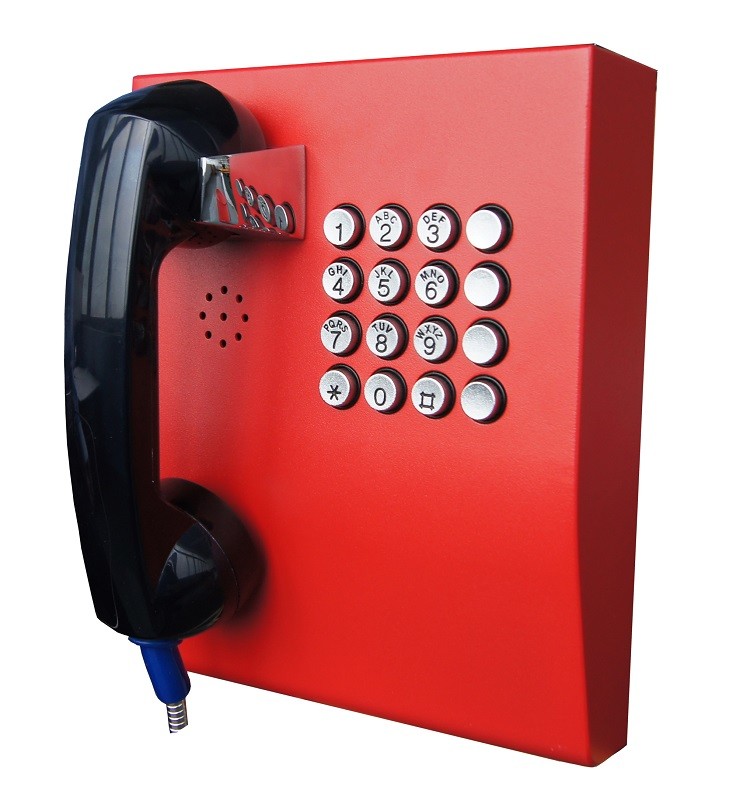

Vandal-proof Emergency Telephone for Public Kiosk, Rugged Parking lot SOS Phone
This Handset Telephone is designed to meet the needs of client who experience loss through vandalism.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
APPLICATIONS
Ideal for Railway trackside, Marine applications, Tunnels, Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Public kiosk, Guard Stations, Police stations, Bank halls, ATM machines, Campus, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue phone, available for SIP version
- Robust housing, constructed of cold rolled steel
- Vandal resistant handset with armored cord
- Weather proof protection up to IP65
- CE, FCC, ISO9001, RoHS compliant
- Inductive coupler fitted as standard for hard of hearing
- Wall/ Pillar mounting, simple installation
- 16-key rugged & metal keypad
- 4 additional buttons programmable for speed-dial
- Non-volatile memory
- Telephone line powered (Analog version )
- External Power supply or PoE powered (SIP version)
- RJ45 port for SIP phone
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
unit size: 248 *195 *132 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2.5 KG
Gross weight: 3.5 KG
