Rugged Tunnel Phone for Underground, Metro Stations, Railway Platform

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR102-2B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Weather Resistant: IP67
Color: Yellow, Blue, Red, Orange (or Optional) Version: Analogue, SIP/VoIP, GSM/3G
Installation: Wall/ Pillar Mounting Warranty: 2 Years
Net Weight: 7 KG Size: 246 *339 *126 (mm)
Vandal Resistant: Yes
High Light:

weatherproof telephone box


outdoor weatherproof telephones

Product Description

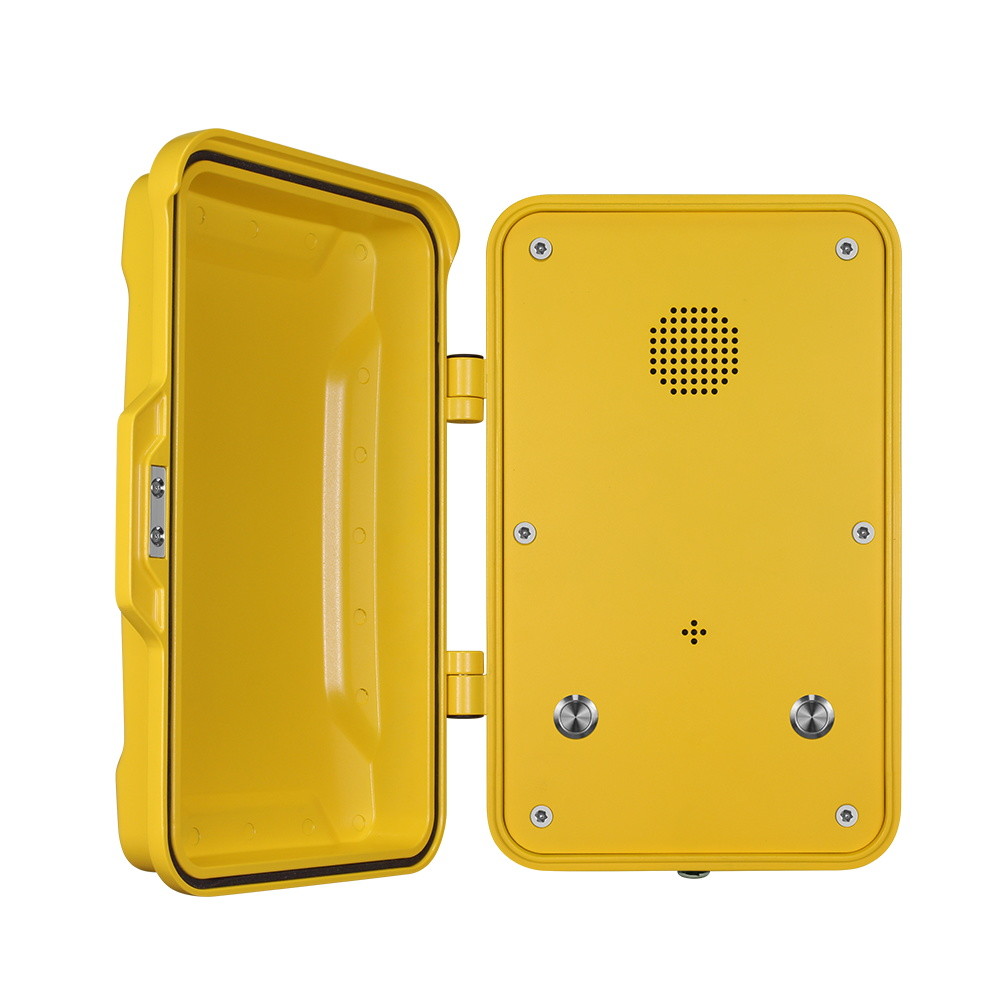

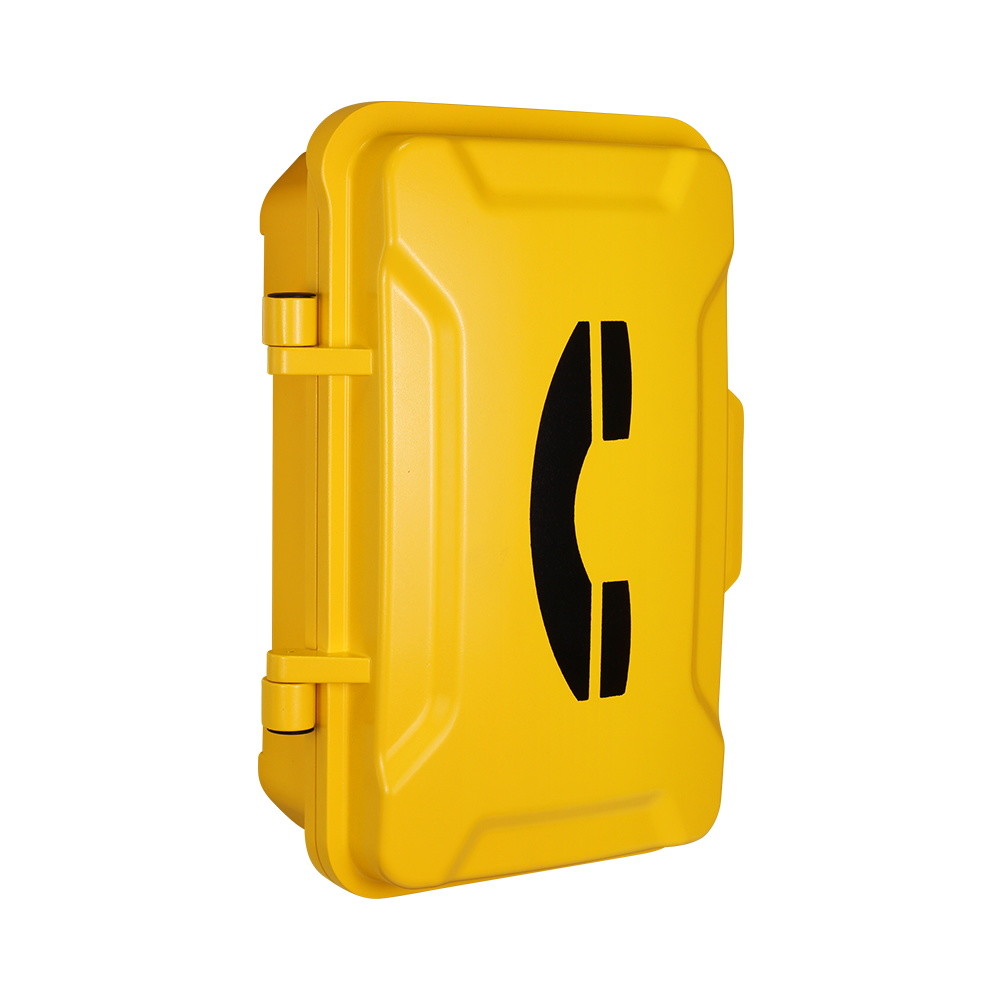

Water Resistant Handsfree Emergency Telephone for Industry, Rugged Tunnel Phone

This weatherproof telephone is idead for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc. which require very reliable telephony under adverse conditions.


This weatherproof telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


Main Features:
- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Vandal resistant stainless steel button

- Weather proof protection to IP67
- Programmed for speed dial
- Wall/ Pillar mounting, simple installation

- Phone line powered (Analogue)
- External power supply or PoE (SIP/VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant



Technical Parameters


Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C


Analogue Version
Power Supply   From the analogue telephone network
Supply Voltage   24 VDC to 65 VDC
Supply Current   20 mA DC to 100 mA DC
Ringer Volume   - 80dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method   DTMF mode in accordance with ITU-T recommendation Q.23.


SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)


Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
