| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR202-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Dimension: | 240 *100 *106 (mm) |
|---|---|---|---|
| Power Supply: | Telephone Line / POE / 12V DC | Auto-dial: | Yes |
| Communication Type: | Full Duplex | Color: | Red, Yellow, Grey |
| Weight: | 2 KG | Warranty: | 2 Years |
| Highlight: | vandal proof telephone,vandal proof intercom |
||

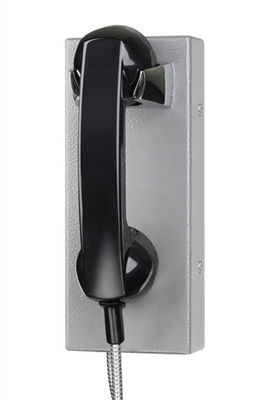

Anti-Vandal PSTN/SIP/3G Telephone Robust Handset for Outdoor / Indoor Emergency
Housed in robust cold rolled steel box and manufactured to a high standard, this hotline telephone offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard SIP phone, Analog phone
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Wall mounting, simple installation
- Weather proof protection: up to IP65
- Programmable for auto-dial
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analog)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- CE, FCC, RoHS, ISO9001 compliance
Technical Specifications
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | ||
| Power Supply | PoE or 12V DC | |
| Power Consumption | -Idle:1.5W -Active:1.8W |
|
| SIP Protocol | SIP 2.0 (RFC3261) | |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 | |
| Communication Type | Full duplex | |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
|
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
unit size: 240 *100 *106 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2 KG
Gross weight: 3 KG
