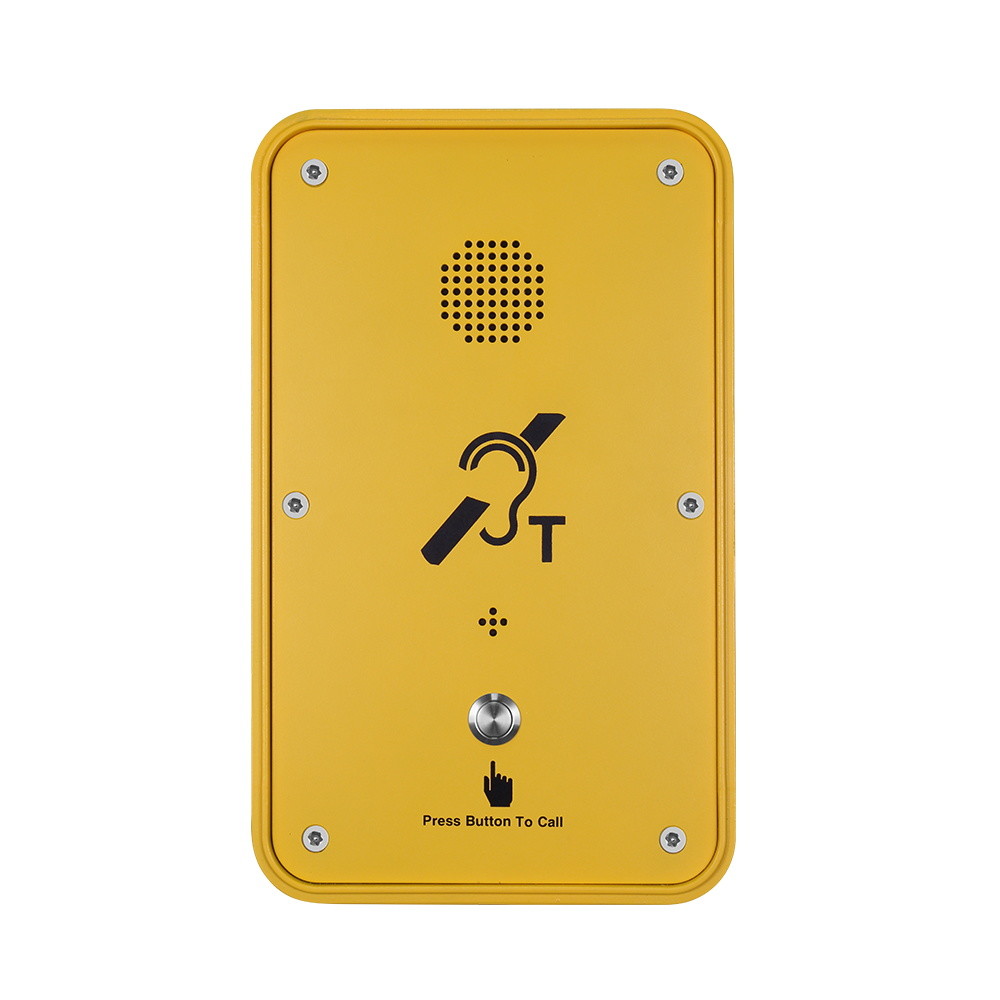

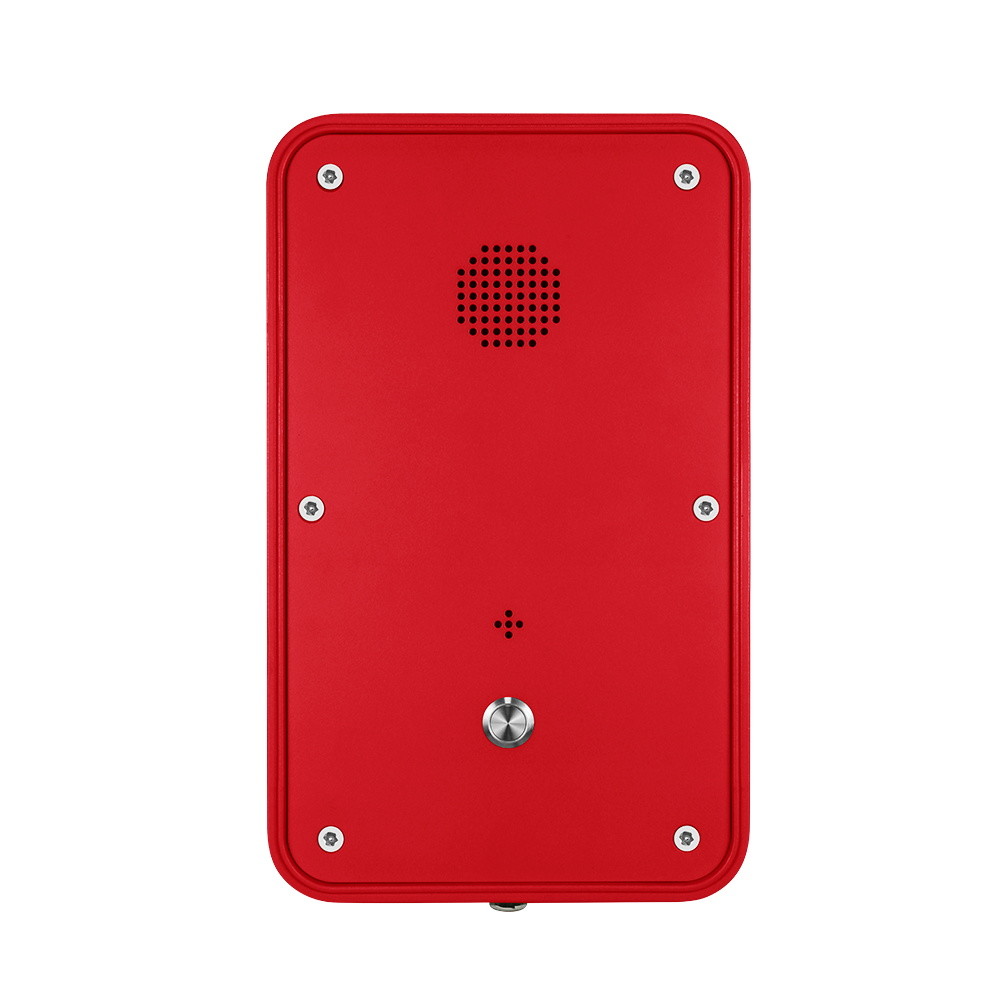

Impact Resistant Emergency Analog Phone Safety With Stainless Steel Buttons

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, IP67, ISO9001:2015

Model Number: JR104-SC

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 3-7 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

wall mount analog phone

,

heavy duty analog phone

Material:
Aluminum Alloy
Color:
Yellow, Red, Orange (or Optional)
Buttons:
Stainless Steel Buttons
Power Supply:
Phone Line Powered
Warranty:
2 Years
Weather Resistant:
IP67
Net Weight:
6 KG
Size:
246 *339 *109 (mm)
Installation:
Wall/ Pillar Mounting
Corrosion Resistant:
Yes
Material:
Aluminum Alloy
Color:
Yellow, Red, Orange (or Optional)
Buttons:
Stainless Steel Buttons
Power Supply:
Phone Line Powered
Warranty:
2 Years
Weather Resistant:
IP67
Net Weight:
6 KG
Size:
246 *339 *109 (mm)
Installation:
Wall/ Pillar Mounting
Corrosion Resistant:
Yes
Product Description

Impact Resistant Hands-free Industrial Emergency Telephone for Hazardous Areas



This Handsfree weatherproof telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.




Main Features:
- Standard Analogue phone

Aluminum alloy die-casting body

- Handsfree operation


- Weather proof protection to IP67

- Programmable for auto-dial
- Phone line powered (Analog)

- Can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN



Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, ISO9001, RoHS compliant





Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.




Technical Parameters

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Package

Unit Size:    339*246*109 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    5 KG
Gross weight:    6 KG
