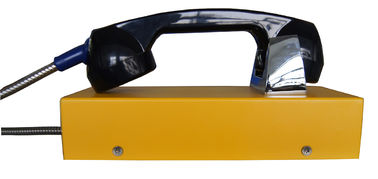

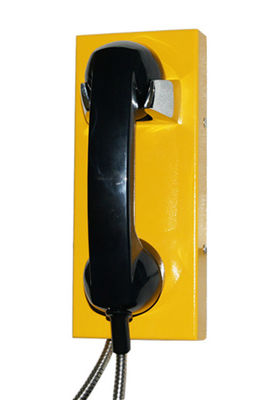

Vandal Proof Help Point Telephone , Emergency Wall Phone For Bank Hall

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR202-CB
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Auto-dial: Yes Version: Analog, SIP/VoIP
Warranty: 2 Years Color: Yellow, Red, Grey
Material: Cold Rolled Steel Dimenstion: 240 *100 *106 (mm)
Application: Elevator,Apartment,Bank Other Public Area Weight: 2 KG
High Light:

vandal proof telephone

,

vandal proof intercom


Product Description

Rugged Help Point for Bank Hall, Hotline Emergency Telephone for Public Service



This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.





MAIN FEATURES

- Standard SIP phone, Analog phone

- Robust housing, constructed of stainless steel

- Vandal resistant handset and armored cord

- Wall mounting, simple installation



- Weather proof protection: up to IP65

- Programmable for auto-dial

- Inductive coupler fitted as standard for hard of hearing



- Phone line powered (Analog)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliance





TECHNICAL SPECIFICATIONS

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Vandal Proof Help Point Telephone , Emergency Wall Phone For Bank Hall 0





PACKAGE

unit size: 240 *100 *106 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 2 KG

Gross weight: 3 KG

Vandal Proof Help Point Telephone , Emergency Wall Phone For Bank Hall 1Vandal Proof Help Point Telephone , Emergency Wall Phone For Bank Hall 2

Vandal Proof Help Point Telephone , Emergency Wall Phone For Bank Hall 3
