| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Color (Phone&Lamp): | Yellow, Blue, Red, Orange (or Optional) |
|---|---|---|---|
| Power Supply: | Phone Line Powered | Weather Resistant: | IP67 |
| Warranty: | 2 Years | Size: | 246 *339 *126 (mm) |
| Net Weight: | 7 KG | Installation: | Wall/ Pillar Mounting |
| Anti-vandal: | Yes | Corrosion Resistant: | Yes |
| High Light: | weatherproof analog phone,heavy duty analog phone,Highway side Industrial Analog Telephone |
||

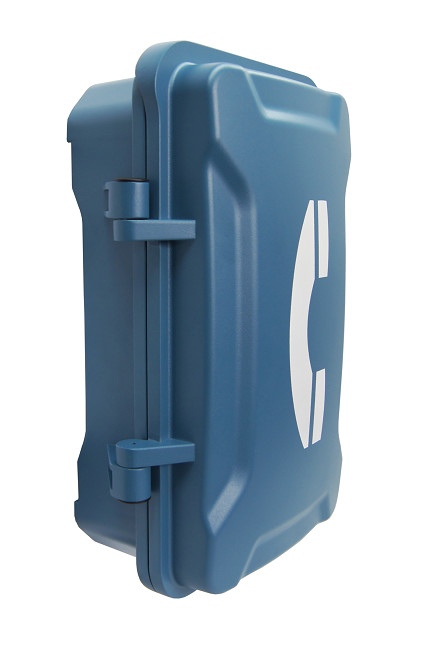

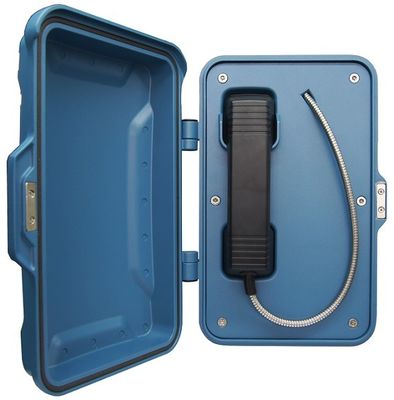

Tunnel Speed-dial Intercom, IP67 Weatherproof Auto-dial Analog Telephone
As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.
Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Main Features:
- Standard Analogue phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- Weather proof protection to IP67
- Programmable for auto-dial
- Power supply: Phone Line Powered
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Unit Size: 339*246*124 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
