| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR201-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Auto-dial: | Yes | Handset Holder: | Yes |
|---|---|---|---|
| Powered: | Phone Line Powered | Dimension: | 240 *100 *106 (mm) |
| Gross Weight: | 3 KG | Armored Cord: | Yes |
| Magnetic Hook: | Yes | Weather Protection: | IP55-IP65 |
| Color: | Grey, Yellow, Red | Material: | Cold Rolled Steel |
| High Light: | wall mount analog phone,weatherproof analog phone,Silver Analog Ring Down Phone |
||

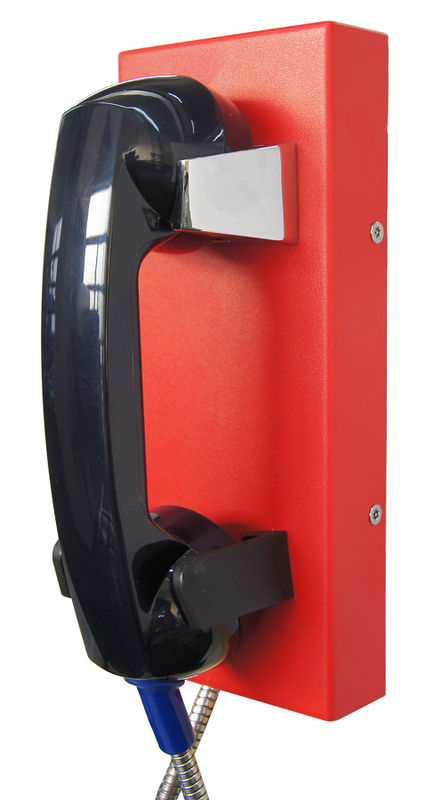

Vandal Resistant Analog Ringdown Phone, Courtesy Hotline Telephones
This Vandal Resistant Hotline Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue phone
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Wall mounting, simple installation
- Weather proof protection: up to IP65
- Programmable for auto-dial
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliance
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
unit size: 240 *100 *106 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2 KG
Gross weight: 3 KG
