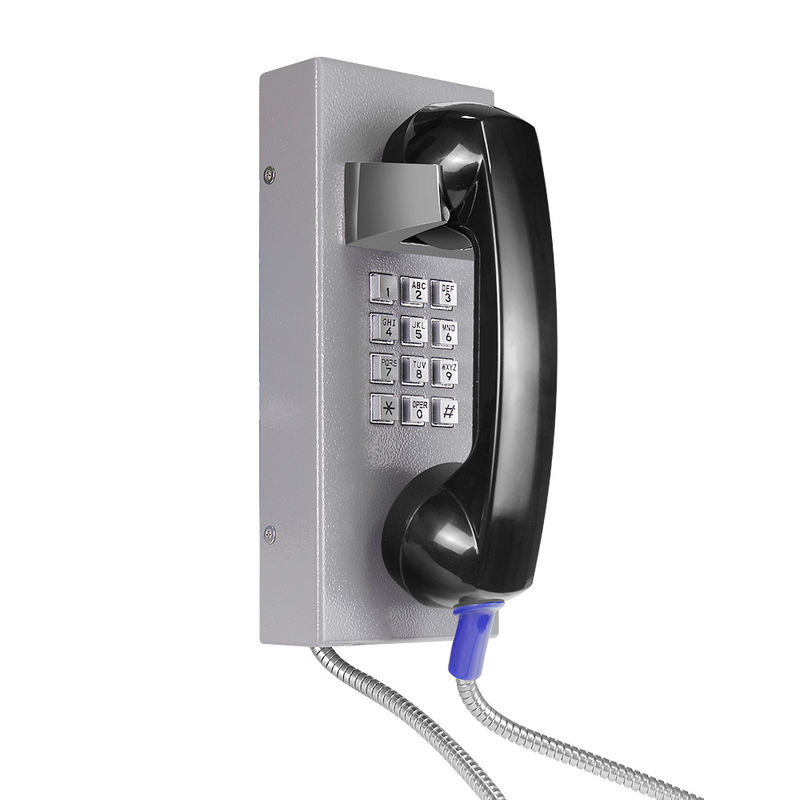

GSM / 3G Outdoor Grey Vandal Resistant Telephone With 12 Key Metal Keypad

Brand Name:	J&R
Model Number:	JR201-FK
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Material:

Cold Rolled Steel

Warranty:

2 Years

Weather Protection:

IP55-IP65

Handset:

ABS Material

Keypad:

12-key Metal Keypad

Gross Weight:

3 KG

Color:

Grey Or Customized Color

Version:

Analog, SIP, GSM/3G

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

vandal resistant phone

vandal proof intercom

Grey Vandal Resistant Telephone

Product Description

Vandal Resistant Telephone with Rugged Handset and Metal Keypad

This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

MAIN FEATURES

- Standard Analogue phone

- Robust housing, constructed of cold rolled steel

- Weather proof protection up to IP55-IP65

- Vandal resistant handset

- Full metal keypad

- Non-volatile memory

- Can be programmed remotely by tone phone or locally via keypad

- Telephone line powered (Analog version )

- Available for SIP/VOIP version

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone

- On wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant

TECHNICAL PARAMETERS

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle: 1.5W -Active: 1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

PACKAGE

unit size: 240 *100 *117 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 2 KG

Gross weight: 3 KG
