Cold Rolled Steel Vandal Resistant Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Version: Analog, SIP, GSM/ 3G
Weather Protection: IP55-IP65 Handset: ABS Material
Keypad: 12-key Metal Keypad Gross Weight: 4 KG
Color: Grey Or Customized Color Warranty: 2 Years
High Light:

vandal proof telephone


vandal proof intercom


IP65 Vandal Resistant Telephone

Product Description

Vandal-proof Correctional Center VoIP Telephone, Robust Handset Phone for Control Room


This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.




- Standard Analogue phone, available for SIP/GSM/3G version

- Robust housing, constructed of cold rolled steel

- Weather proof protection up to IP55-IP65

- Vandal resistant handset with armored cord


- 12-key rugged & metal keypad

- Non-volatile memory

- Can be programmed remotely by tone phone or locally via keypad


- Telephone line powered (Analog version )

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone


- On wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant




Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.


SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3  KG

Gross weight: 4 KG

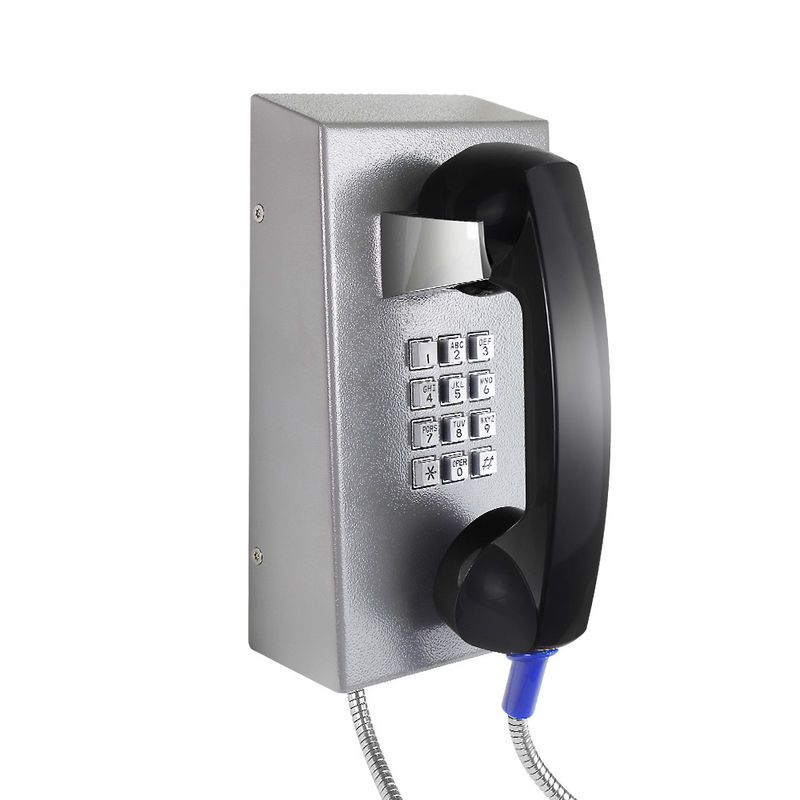

Cold Rolled Steel Vandal Resistant Telephone 0

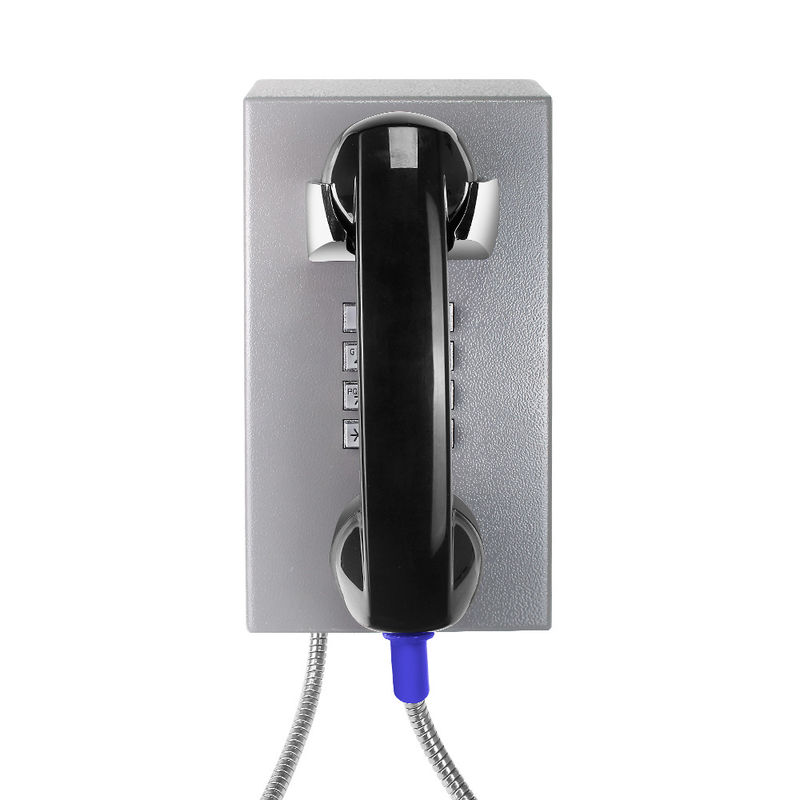

Cold Rolled Steel Vandal Resistant Telephone 1



Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.


Cold Rolled Steel Vandal Resistant Telephone 2
