Moisture Resistant Outdoor SIP Phone Aluminum Alloy Material With Emergency Buttons

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-3B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Yellow, Red, Orange (or Optional)
Weather Resistant: IP67 Power Supply: PoE
Installation: Wall/ Pillar Mounting Size: 246 *339 *124 (mm)
Net Weight: 7 KG Warranty: 2 Years
Anti-vandal: Yes Corrosion Resistant: Yes
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

,

Aluminum Alloy Outdoor SIP Phone


Product Description

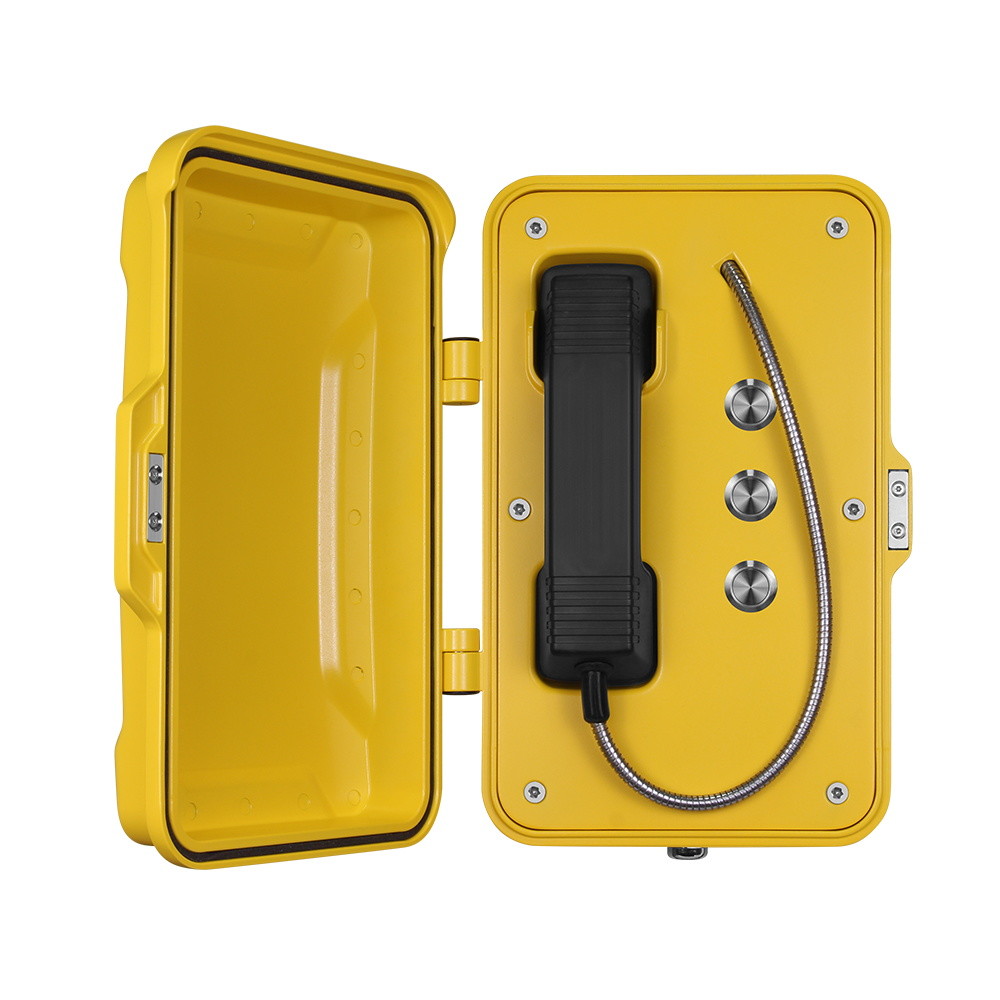

Moisture Resistant SIP Telephone with Emergency Buttons for Outdoor



This Weatherproof telephone is designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.



This SIP telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.




Main Features:
- Standard SIP/ VoIP phone

Aluminum alloy die-casting body
Vandal resistant handset and armored cord
- Weather proof protection to IP67



Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

Three buttons can programmable for auto-dial


- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant




SIP-VoIP Technical Parameters

SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.



Package

Unit Size:    339*246*124 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    6 KG
Gross weight:    7 KG
