VoIP Speed Dial Outdoor Telephone Box For Heavy Duty Chemical / Power Industry

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-CB
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Yellow, Blue, Red, Orange (or Optional)
Power Supply: PoE Weather Resistant: IP67
Installation: Wall/ Pillar Mounting Size: 246 *339 *124 (mm)
Net Weight: 7 KG Warranty: 2 Years
Anti-vandal: Yes Corrosion Resistant: Yes
High Light:

weatherproof telephone box


outdoor weatherproof telephones

Product Description

Moisture Resistant Speed-dial VoIP Telephone for Heavy Duty Industry


The JR100 series SIP telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


Main Features:
- Standard SIP/ VoIP phone

Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing


- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67

Programmable for auto-dial

- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant


SIP-VoIP Technical Parameters


Adapter Input:   100-240VAC 50~60Hz Output:5V/1A

   WAN:10/100Base- T RJ-45 for LAN, Auto MDIX

   LAN:10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:    Idle:1.5W/ Active:1.8W


Voice Features

- Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication (none, basic, MD5), DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out

Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

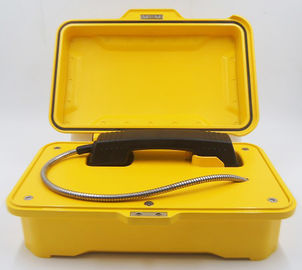

 VoIP Speed Dial Outdoor Telephone Box For Heavy Duty Chemical / Power Industry 0

Unit Size:    339*246*124 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    6 KG
Gross weight:    7 KG

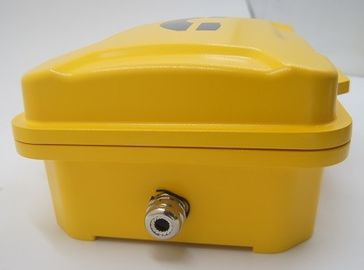

VoIP Speed Dial Outdoor Telephone Box For Heavy Duty Chemical / Power Industry 1
