IP67 Industrial Weatherproof Telephone With Beacon , PoE Powered Tunnel Phone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK-L
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Weather Resistant: IP67
Power Supply: PoE, Or External 12V 2A Power Warranty: 2 Years
Color: Yellow, Blue, Red, Orange (or Optional) Size: 246 *339 *126 (mm)
Net Weight: 7 KG Installation: Wall/ Pillar Mounting
Anti-vandal: Yes With Beacon: Yes
High Light:

weather resistant telephone

,

weatherproof telephone box

,

Pillar Mounting Industrial Weatherproof Telephone


Product Description

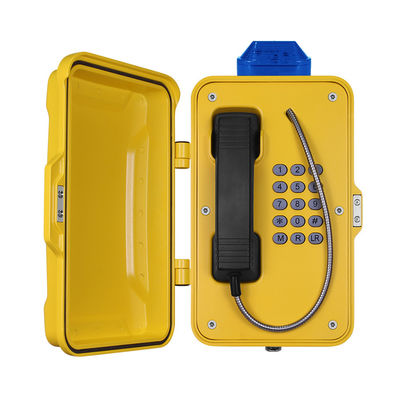

IP67 Weatherproof Industrial Telephone with Beacon, PoE powered Tunnel Phone



 Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial applications, etc.


Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67


- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
   “LR button for last number redial
   “R for flash recall
   “M for muting

- With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.
- Wall/ Pillar mounting, simple installation


- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant



Optional
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate


Technical Parameters



Voice Features

- Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of the server, peer to peer

- SIP support 2 servers, user can through each server to call in and out



Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



IP67 Industrial Weatherproof Telephone With Beacon , PoE Powered Tunnel Phone 0

Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG

IP67 Industrial Weatherproof Telephone With Beacon , PoE Powered Tunnel Phone 1

IP67 Industrial Weatherproof Telephone With Beacon , PoE Powered Tunnel Phone 2
