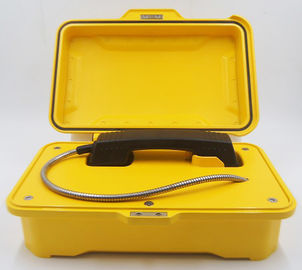

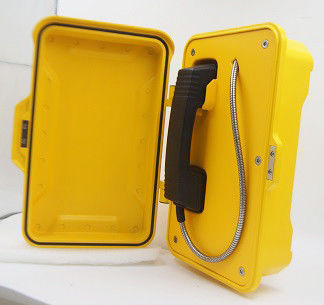

Auto Dial Analog Explosion Proof Telephone With Aluminium Alloy Material Case

Auto Dial Analog Explosion Proof Telephone With Aluminium Alloy Material Case

Brand Name:	J&R
Model Number:	JREX101-CB
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ATEX, CE, FCC, RoHS, IP67, ISO9001

Material:

Aluminium Alloy

Color:

Orange, Others Optional

Weather Resistant:

IP67

Power Supply:

Phone Line Powered

Installation:

Wall/Pillar Mounting

Weight:

8 KG

Warranty:

2 Years

Unit Size:

246*339*126 (mm)

Packaging Details:

pearl cotton, carton

Supply Ability:

1000 sets per month

Highlight:

ex proof telephone

explosion proof ip phone

Explosion Proof Telephone Pillar Mounting

Product Description

Corrosion Resistant Auto-dial Analog EX-proof Telephone with ATEX for Industry

APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.

MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing

- With NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA

- Power supply: Phone Line Powered

- Programmable for auto-dial
- Handset with Noise canceling microphone,for effective communication from noisy areas
- Hermetically sealed non-contact hook sensing switch improves system reliability
- Captive cover screws prevent loss during installation

OPTIONAL
- Add Horn & Lamp on the top

- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate

This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22

TECHNICAL SPECIFICATION

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

PACKAGE
Unit Size: 246*339*126 mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
