Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station

China Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station supplier
Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station supplier Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station supplier Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station supplier

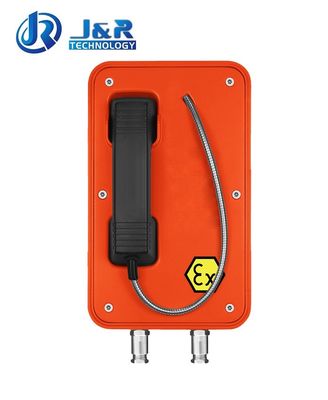

Large Image :  Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001
Model Number: JREX103-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Color: Orange, Others Optional Material: Aluminium Alloy
Power Supply: Power Over Ethernet (PoE) Weather Resistant: IP67
Warranty: 2 Years Unit Size: 204*334*109 (mm)
Installation: Wall/Pillar Mounting Weight: 7 KG
Vandal Resistant: Yes Keypad: No Keypad

Robust Hotline Explosion Proof VoIP Telephone for Power Station, Industrial EX-proof Phone



This JREX103-CB Hotline Explosion-proof VoIP Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.





This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, Zone 2, Zone 22



MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing

- IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Ex ’d’ protected
- Temperature classification:T4

- Programmable for auto-dial

Power supply: Power over Ethernet (PoE)
- SIP or H323 protocols (Compatible with all PBX’S)
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas

  (Armored SS cord stands up to rough treatment,optional for black curly cord )

- Hermetically sealed non-contact hook sensing switch improves system reliability
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation



TECHNICAL SPECIFICATION

SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C







APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.





PACKAGE
Unit Size: 246*339*109mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
