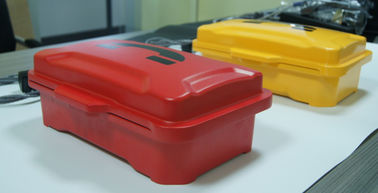

Anti Corrosion Auto Dial Heavy Duty Telephone Box With Power Over Ethernet Powered

Anti Corrosion Auto Dial Heavy Duty Telephone Box With Power Over Ethernet Powered

Brand Name:	J&R
Model Number:	JREX101-CB
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ATEX, CE, FCC, RoHS, IP67, ISO9001

Color:

Orange, Others Optional

Material:

Aluminium Alloy

Warranty:

2 Years

Power Supply:

PoE (Power Over Ethernet)

Weather Resistant:

IP67

Weight:

8 KG

Installation:

Wall/Pillar Mounting

Unit Size:

246*339*126 (mm)

Vandal Resistant:

Yes

Keypad:

No Keypad

Packaging Details:

pearl cotton, carton

Supply Ability:

1000 sets per month

Highlight:

ex proof telephone

hazardous area telephone

IP67 Weatherproof Heavy Duty Telephone

Product Description

Corrosion Resistant IP67 Auto-Dial Explosion-proof VoIP Telephone for Heavy Duty Industry

This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, Zone 2, Zone 22

APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.

MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing

- IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Ex ’d’ protected
- Temperature classification:T4
- Programmable for auto-dial

- Power supply: Power over Ethernet (PoE)
- SIP or H323 protocols (Compatible with all PBX’S)
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas
(Armored SS cord stands up to rough treatment,optional for black curly cord )

- Hermetically sealed non-contact hook sensing switch improves system reliability
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation

TECHNICAL SPECIFICATION

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

PACKAGE
Unit Size: 246*339*126mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
