Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR-TH-02
Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Pearl cotton, Wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Detail Information
Material: Fiberglass Reinforced Polyester (GRP) Noise Attenuation: 15 DB (SPL)
Size: 690*480*800 (mm) Color: Yellow, Blue, Orange, Or Optional
Application: Both Indoors, Outdoors, Off-Shore & On-Shore Packaging Materials: Pearl Cotton, Wooden Box
Net Weight: 20 KG Installation: Wall Mounting
Vandal Resistant: Yes Fire Retardant: Yes
High Light:

soundproof phone booth


acoustic phone hood


Acoustic Corrosion Resistant Phone Hood

Product Description

Corrosion Resistant Acoustic Phone Hood, Noise Reduction Industrial Phone Booth


Product Name  Acoustic Telephone Booth
Model No.  JR-PH-02
Materials  Fiberglass reinforced polyester(GRP)
Size  690*480*800 (mm)


• P9042 - Acoustic insulation: Noise Attenuation up to 15 dB
• Polyethylene plastic construction
• Polyethylene material ANSI/UL94 flammability approved
• Durable, lightweight, chemical resistant body

• Excellent low temperatures impact properties
• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
Fire retardant class "0" rating
• Completely maintenance free, UV and corrosion resistant, impervious to chemical attack
• Convenient writing shelf with drainage hubs to prevent water accumulation

• Can be used both indoors, outdoors and offshore
• Permanent black handset graphic molded into the booth surface
• Standard color - Yellow or customized
• Optional colors available upon request 1



• Dimensions - 690*480*800 (mm)
• Weight - Approx 20 Kg
• Stock Colour - Yellow , Blue, Red, Others to order

• Outer Shell - General Purpose Resin continuous filament mat - Fire Resistance to BS476 Part 7
Class 1 Surface Spread of Flame
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3

• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness

Each Acoustic Booth can be fitted with a JR telephone suited for specific needs and requirements, and equipped with:
• LED Strobe Light
• Industrial speaker/ringer, speaker or ringer (up to 110 dB)





This phone booths have been widely used in Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.

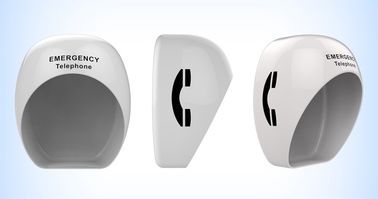

Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood 0


Unit size: 690*480*800 (mm)

Wooden box size: 720*500*830 (mm)

Packaging materials: Pearl cotton, Wooden box

Gross weight: 43 KG

Net weight: 20 KG

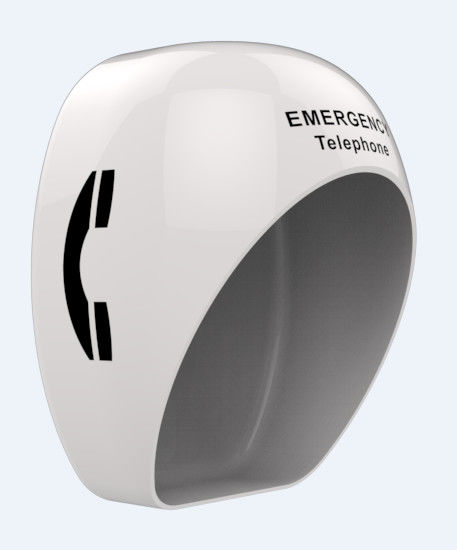

Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood 1

Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood 2

Industrial Acoustic Phone Booth, Corrosion Resistant Phone Hood 3
