Industrial VoIP / SIP Telephone Circuit Board, IP PCB for Industry

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS
Model Number: JR-IP-01
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Protection Level: Weather-resistant, Waterproof, Rugged, Standard Network: VoIP, SIP, IP
Power Supply: DC 5V Powered Or PoE Connection: RJ45 LAN Or WAN Direct Connection
Applications: Tunnel, Mining, Marine, Chemical Plant, Ect. Size: 114*66 (mm)
Quality Of Service (QoS): Ensuring Optimal Delivery Of Voice Type Of Service (ToS): High Throughput And Reliability (RFC3168)
High Light:

outdoor telephone enclosure

,

stainless steel keypad


Product Description

Industrial VoIP Telephone Circuit JR-IP-01, SIP PCB for Heavy Duty Industry



Main Features

- DC 5V powered or PoE(Power Over Ethernet)
- No Additional Interface Required
- Web Page Configuration
- Real-time Alarm Reporting
- SIP Compatible


- Connection: RJ45 LAN or WAN Direct Connection
- Automatic Call Divert (rollover), via Memory List
- Auto Answer
- Multicast Capable


- Quality of Service (QoS): ensuring optimal delivery of voice
- Type of Service (ToS): high throughput and reliability (RFC3168)
- ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
- SIP (Session Initiation Protocol) RFC3261


- Inbuilt redundancy: able to make diversion calls to 2nd PBX
- TR069 (Technical Report 069): for advanced status monitoring and control
- Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.


- Mass configuration available.
- Compatible with standard SIP protocol VOIP phone systems.

  (Asterisk,Cisco, Mitel, Elastix, Freeswitch, MiniSipServer,Yeastar MyPBX etc.)





Charactertics of JR VoIP Telephone Circuit

Protection level:

weather-resistant, waterproof, rugged, standard

Network:

VoIP, SIP, IP



Sound level:

Min.: 75 dB

Max.: 90 dB

80 dB





Applications 0f JR VoIP Telephone Circuit

This VoIP Telephone Circuit is ideal for railway applications,tunnels,highways,marine applications,underground mining, retail banking,clean rooms, firefighter, taxi, industrial,prisons, parking-lots,power stations, chemical plants, etc.





Other characteristics of JR VoIP Telephone Circuit

handheld, emergency, handsfree, auto dial, for harsh environments, with LCD display, with video camera, paging, ringdown, outdoor, built-in, with loudspeaker, with flashing beacon, with indicator lights

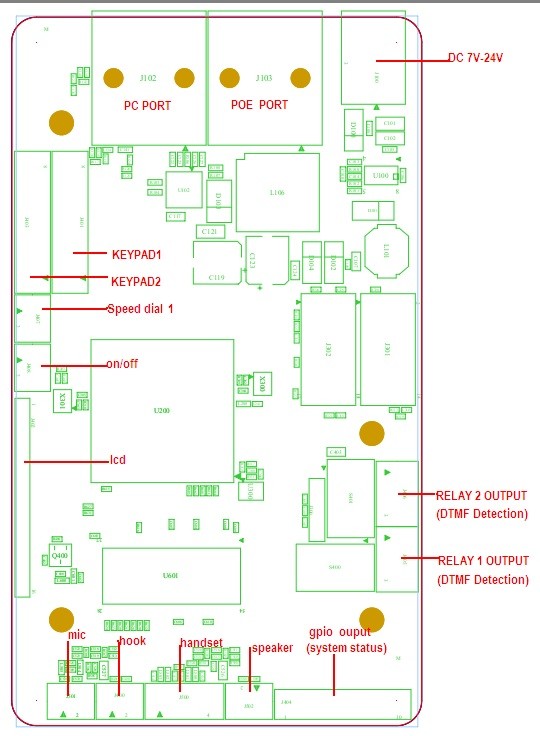

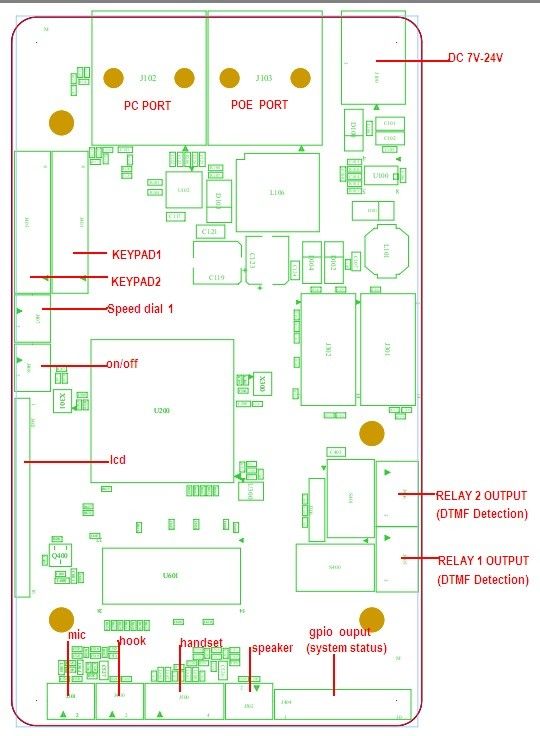

Industrial VoIP / SIP Telephone Circuit Board, IP PCB for Industry 0

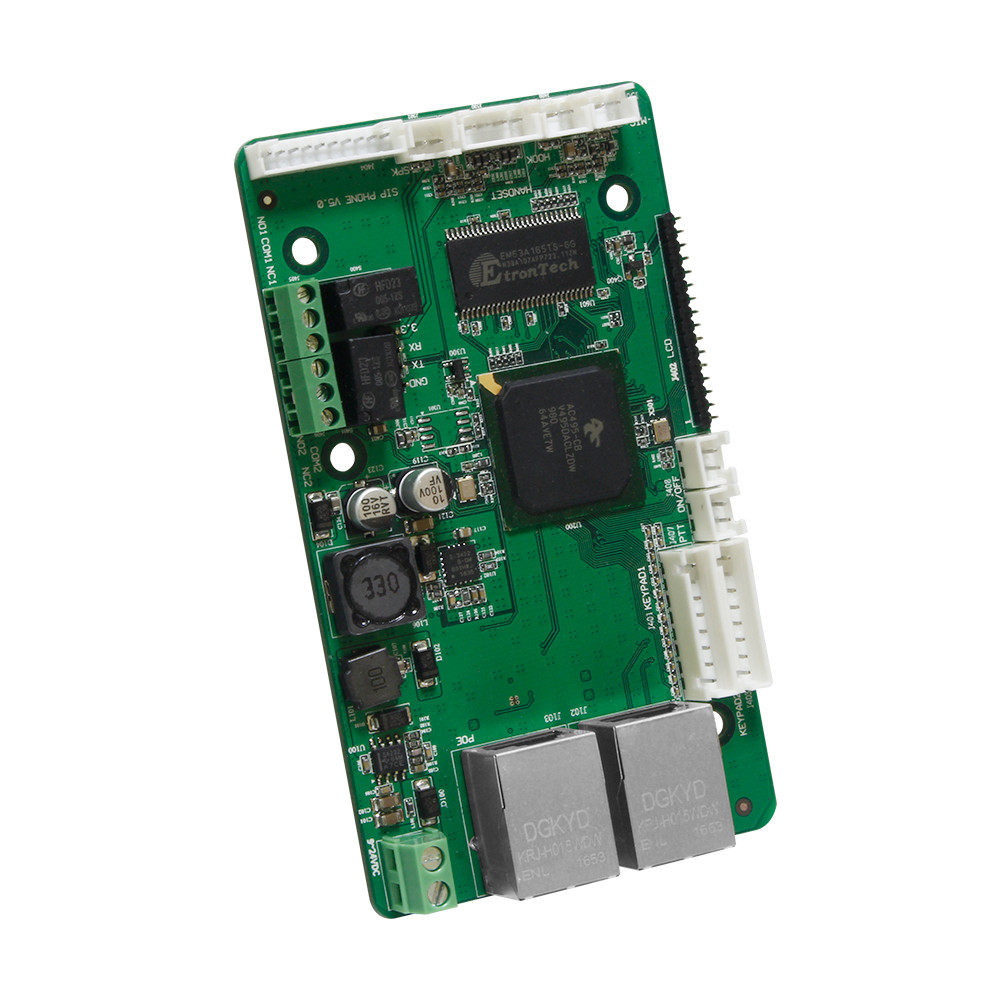

Industrial VoIP / SIP Telephone Circuit Board, IP PCB for Industry 1
