Vandal Resistant Telephone
Created with Pixso.

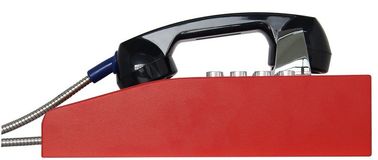

Red Analogue Vandal Resistant Telephone For Public Kiosk / Police Stations

Red Analogue Vandal Resistant Telephone For Public Kiosk / Police Stations

Brand Name: J&R
Model Number: JR207-FK
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Cold Rolled Steel
Color:
Red
Weatherproof:
IP55-IP65
Handset:
Rugged ABS Material
Keypad:
16-key Metal Keypad
Warranty:
2 Years
Application:
Prison, Factory, Bank, Hospitals, Etc.
Brand:
J&R
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

vandal resistant phone

,

vandal proof telephone

Product Description

Vandal-proof Emergency Telephone for Public Kiosk, Rugged Parking lot SOS Phone



This Handset Telephone is designed to meet the needs of client who experience loss through vandalism.



Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





APPLICATIONS

Ideal for Railway trackside, Marine applications, Tunnels, Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Public kiosk, Guard Stations, Police stations, Bank halls, ATM machines, Campus, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone, available for SIP version

- Robust housing, constructed of cold rolled steel

- Vandal resistant handset with armored cord



- Weather proof protection up to IP65

- CE, FCC, ISO9001, RoHS compliant

- Inductive coupler fitted as standard for hard of hearing

- Wall/ Pillar mounting, simple installation



- 16-key rugged & metal keypad

- 4 additional buttons programmable for speed-dial

- Non-volatile memory



- Telephone line powered (Analog version )

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C







PACKAGE

unit size: 248 *195 *132 (mm)

Packaging materials: pearl cotton, carton

Net weight: 2.5 KG

Gross weight: 3.5 KG

Red Analogue Vandal Resistant Telephone For Public Kiosk / Police Stations 0

Red Analogue Vandal Resistant Telephone For Public Kiosk / Police Stations 1
