Vandal Proof 4G Emergency Phone Tower For Campus / Roadside

Brand Name:	J&R
Model Number:	JR321-SC-SP
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001:2015

Material:

Stainless Steel For Phone Unit, Cold Rolled Steel For Pillar

Weather Resistant:

IP65

Warranty:

2 Years

Installation:

Pillar Mounting

Color:

Bule, Orange, Yellow (or Optional)

Size:

2703 *340 *300 (mm)

Net Weight:

130 KG

Vandal Resistant:

Yes

Power Supply:

12V DC, Or Solar Powered

Packaging Details:

Pearl cotton, wooden case

Supply Ability:

1000 sets per month

Highlight:

Vandal Proof Emergency Phone Tower

3G Emergency Phone Tower

Vandal Proof Roadside Emergency Phone

Product Description

Vandal-proof 3G / 4G Emergency Telephone Tower, For Campus / Roadside SOS call phone

Emergency Telephone, Cold-rolled steel body, 1Button, Post Mounting, with lamp, Blue color (other colour on demand)

Housed in a anti-vandal CRS enclosure, Standing along-mounting

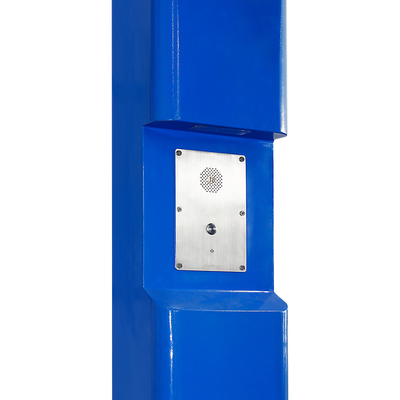

Vandal Proof 4G Emergency Phone Tower For Campus / Roadside 0

Campus / Roadside SOS call phone Main Features:

Dimensions (W x D x H)	12.0 x 10.0 x 127.9 in. (305 x 254 x 3249 mm) including mast with 2 in. radius corners
Weight	355 lbs. (130 kg) for empty tower
Construction	0.12 -0.125 thick in steel
Coating	High-gloss, multi-layer, corrosion-inhibitive system with resistance to graffiti protection
Colors	Safety Blue is standard. Available in custom colors.
Signage	3.25 in. high reflective white “EMERGENCY” lettering with wide-angle visibility is standard. Available in custom colors, lettering and graphics.
Lighting	LED Blue Light: 209 lumens peak, 78 flashes per minute, 70% of initial lumens after 50,000 hours of operation
Power	9.0 watts, 12-24VDC
Mounting	Mounts into concrete foundation using included hardware (shipped in advance). Mounting options available for pre-poured parking decks.
Warranty	5-year warranty on tower (2-year warranty on electronics)

Applications
This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

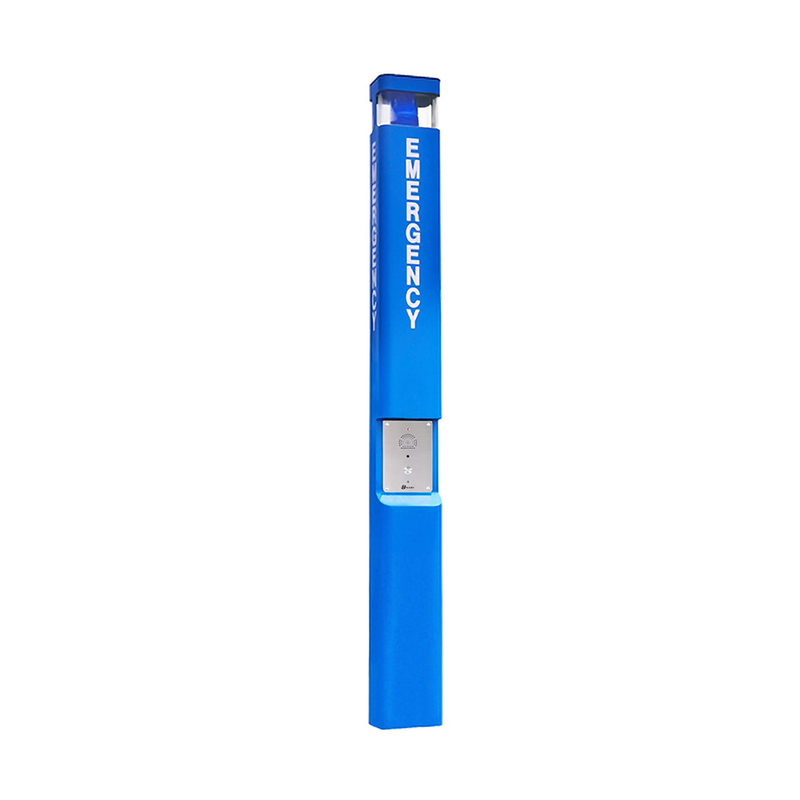

Vandal Proof 4G Emergency Phone Tower For Campus / Roadside 1

Vandal Proof 4G Emergency Phone Tower For Campus / Roadside 2

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C
Package
Unit size:	2703 340 300 (mm)
Packaging materials	Pearl cotton, Wooden Box
Weight:	130 KG
