| Place of Origin: | Shenzhen,Guangdong,China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ATEX |
| Model Number: | JREX103-HB |
| Minimum Order Quantity: | 1 Piece |
| Price: | US $899 ~ US $999(negotiable) |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 10000 pcs per month |
| Color: | Orange,Yellow,Red Or Customized | Version: | Analog, SIP,IP,VoIP |
|---|---|---|---|
| Installation: | Wall Mounting Or Pillar Mounting | Warranty: | 2 Years |
| Net Weight: | 7 KG | Gross Weight: | 8 KG |
| Ingress Protection: | IP67 | Applications: | Mine,Oil Rigs,Tunnel,Petrol Station,metro Etc |
| High Light: | Hotline ATEX Broadcasting Telephones,EX Horn ATEX Broadcasting Telephones,IP67 Analog Vandal Resistant Phone |
||

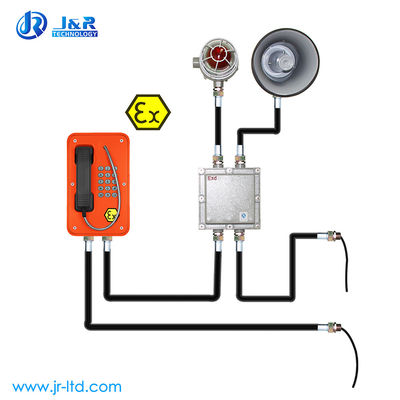

Hotline ATEX Broadcasting Telephones,Explosion-proof telephone with EX horn & EX flasher for Hazardous area

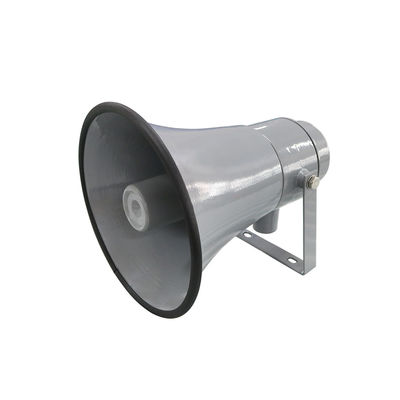

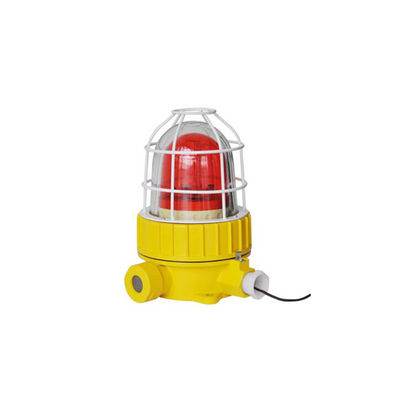

With explosion proof beacon and loudspeaker, the phone will ringing loudly and the lamp will flashing when there is a incoming call
|
Casing Material |
Die cast aluminium, epoxy powder coated |
|
Handset Material |
Cycoloy with stainless steel spiral cord |
|
Protection Type |
IP66-IP67 |
| Hookswitch | Electronic / magnetic with no visible moving parts |
|
Explosion Protection |
II 2G Ex e ib [ib] mb IIC T4 Gb |
|
Ringing Tone |
Built-in External Ringer that provides penetrating calling signal (85 dbA at 1meter) |
| M.T.B.F. | excess of 50,000 hours using |
| Weight | Up to 8 kg depending on option |
| Keypad |
Weather resistant full Keypad, No.of keys(TOTAL15KEYS):0-9,*,#,Redial,Mute,Last Number Redial |
Technical Specification
Hotline ATEX Broadcasting Telephones,Explosion-proof telephone with EX horn & EX flasher for Hazardous area
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature |
-25°C to +85°C |
Features
Hotline ATEX Broadcasting Telephones,Explosion-proof telephone with EX horn & EX flasher for Hazardous area
★ Zone classification: Zone 1& Zone 2
★ Corrosion resistant aluminum alloy die casting housing
★ Certificated for use in Hazardous areas of Gas Group IIB/IIA
★ Fully configurable through any internet browser or the on-board display
★ Available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings
Applications
Hotline ATEX Broadcasting Telephones,Explosion-proof telephone with EX horn & EX flasher for Hazardous area
