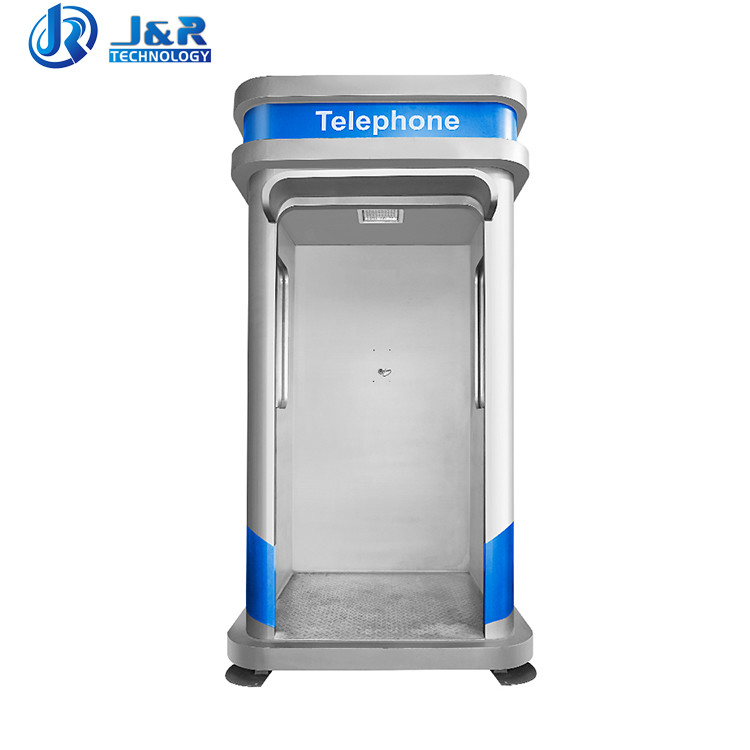

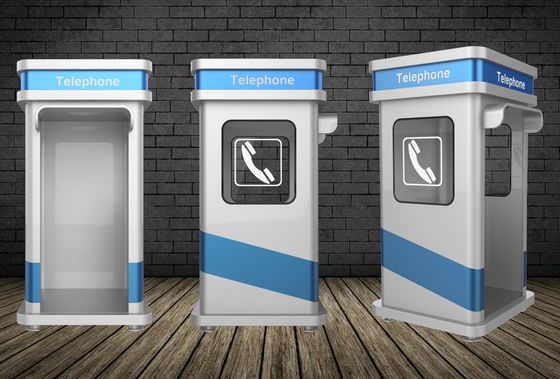

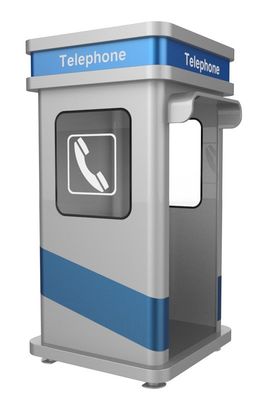

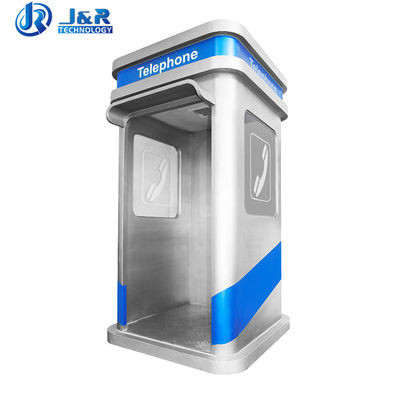

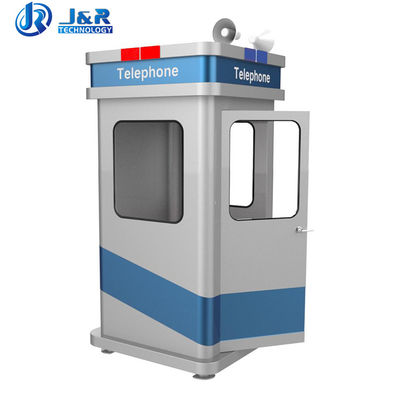

25 dB Noise Attenuation Soundproof Telephone Booth with Robust Galvanised Metal for Stand Alone Installation

Brand Name:	J&R
Model Number:	JR-TH-03
MOQ:	1 unit
Price:	Reconsideration
Payment Terms:	L/C,T/T
Supply Ability:	1000 units per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Material:

Robust Galvanised Metal

Noise Attenuation:

25 DB (SPL)

Size:

1100*1100*2400 (mm)

Color:

Grey, Or Optional

Application:

Outdoors, Off-Shore & On-Shore

Packaging Materials:

Pearl Cotton, Wooden Support

Net Weight:

300 KG

Installation:

Stand Alone

Product Name:

Soundproof Telephone Booth Noiseproof Emergency Hood Phone Booth For Office

Packaging Details:

Pearl cotton, Wooden box

Supply Ability:

1000 units per month

Highlight:

soundproof phone booth

acoustic phone hood

Product Description

Noiseproof Emergency Hood Acoustic Phone Booth For Office

Stand Alone Installation

Soundproof Telephone Booth Noiseproof Emergency Hood Phone Booth for Office

Manufactured in robust galvanised metal with internal three sides pre-lined with 50mm non-combustible, non-hygroscopic acoustic insulation. The kiosk is secured by galvanised perforated panels and features additional acoustic slab insulation in the roof cavity. Telephone equipment is fitted to the inner back panel of the booth.

Two vandal-proof windows provide natural light, while the booth's elegant design and optional interior lamp ensure quiet, safe communication environments day and night.

Product Name	Acoustic Telephone Booth
Model No.	JR-TH-03
Materials	Robust Galvanised Metal
Size	110011002400 (mm)
Application	Heavy Industries, Refineries, Airport, Oil & Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Offshore platforms, and other high noise industrial locations.

Product Features

Standalone booth design
Robust metal construction
Durable galvanized plate body
Excellent low temperature impact properties
Completely maintenance free and corrosion resistant
Impervious to chemical attack
Noise reduction with door: up to 38dB
Noise reduction without door: up to 25dB
Modern, fancy appearance
Weatherproof for outdoor use in harsh environments
Optional colors and dimensions available upon request
Fire retardant, UV resistant, and vandalism-proof
Standalone design with easy fixing system

Specifications

Dimensions: H2400mm * W1100mm * D1100mm
Weight: Approximately 300 KG
Standard Colour: Silver gray (others available to order)
Body Material: Robust galvanised metal body
Acoustic Insulation: 50mm tissue faced non-hygroscopic Rockwool
Window: Vandal-proof tempered glass

Accessories and Options

Each Acoustic Booth can be fitted with a JR telephone suited for specific needs and requirements, and optionally includes:

LED Strobe Light fixed on the top outside the booth
Industrial speaker/ringer (up to 110 dB)
Interior lamp fixed on the top inside the booth

Applications

Soundproof Telephone Booth Noiseproof Emergency Hood Phone Booth for Office

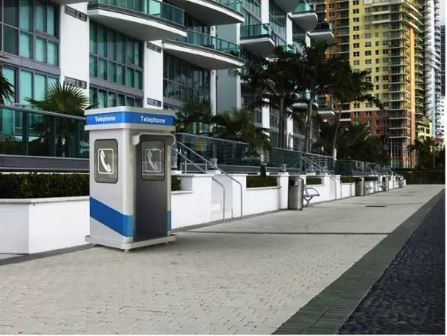

This vandal-resistant telephone booth is ideal for Railway applications, Marine applications, Tunnels, Underground Mining, Firefighter stations, Industrial facilities, Prisons, Jails, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, and both interior and exterior building installations.

Packaging Details

Unit size: 1100*1100*2400 (mm)
Wooden support size: 650*350*830 (mm)
Packaging materials: Pearl cotton, Wooden support
Net weight: 300 KG
Gross weight: 310 KG
