Home > products > Industrial Weatherproof Telephone > J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone

J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR101-FK-L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Reconsideration

Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Product Name:
J&R Wall Mounting Yellow Color Emergency Marine Waterproof Telephone
Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Yes
Feature1:
With LED Lamp Indicator
Handset:
Yes
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature2:
Full Keypad
Feature3:
Anti Vamdal
Product Name:
J&R Wall Mounting Yellow Color Emergency Marine Waterproof Telephone
Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Yes
Feature1:
With LED Lamp Indicator
Handset:
Yes
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature2:
Full Keypad
Feature3:
Anti Vamdal
Product Description
Product Description
J&R Wall mounting yellow color emergency marine waterproof telephone
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

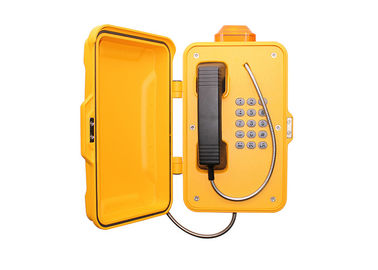

J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone 0

Specification

J&R Wall mounting yellow color emergency marine waterproof telephone

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC

Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex

Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS




Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C

Application

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

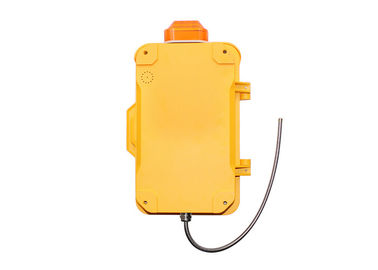

J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone 1

Feature

J&R Wall mounting yellow color emergency marine waterproof telephone

Standard Analogue phone or SIP phone
Aluminum alloy die-casting body
Vandal resistant handset and cord
Weather proof protection to IP67
Full keypad, with LED lamp
Wall mounting, simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered/AC/DC powered
External power supply or PoE (SIP)
RJ45 Port for SIP connection
With LED lamp fixed on the top
CE,FCC,ROSH compliant


Packing & Delivery

J&R Wall mounting yellow color emergency marine waterproof telephone

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG

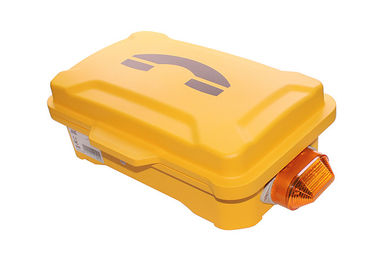

J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone 2
Certifications

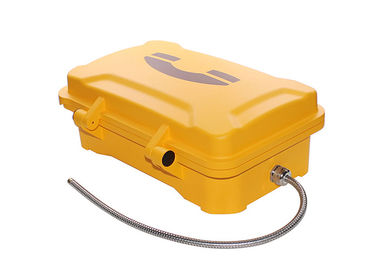

J&R Wall Mounting Outdoor Weatherproof Telephones , Industrial Analog Telephone 3
Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
