| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | ATEX, CE, FCC, RoHS, IP67, ISO9001 |
| Model Number: | JREX103 |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Material: | Aluminium Alloy | Unit Size: | 246*339*109 (mm) |
|---|---|---|---|
| Weight: | 7 KG | Power Supply: | Phone Line Powered |
| Weather Resistant: | IP66-IP67 | Warranty: | 2 Years |
| Installation: | Wall Mounting | Color: | Orange, Others Optional |
| Anti-vandal: | Yes | Handset: | Rugged, With Armored Cord |
| Door Cover: | No | ||
| High Light: | ex proof telephone,explosion proof ip phone |
||

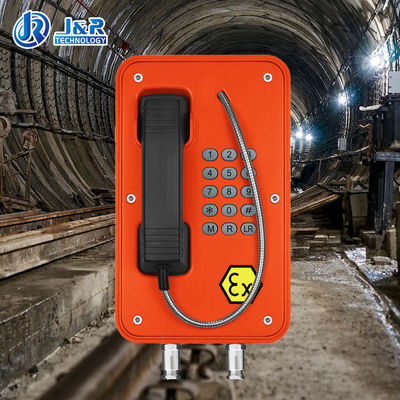

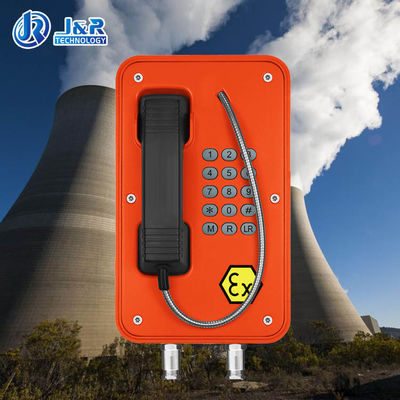

Rugged SIP Explosion Proof Telephone For Underground Mining,Oil & Gas station
MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing
- Available in four colors (Orange, Blue, Yellow, Red)
- With NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T4
- Power supply: Phone Line Powered
- Handset with Noise canceling microphone,for effective communication from noisy areas
(Armored SS cord stands up to rough treatment,optional for black curly cord )
- Completely programmable weatherproof keypad designed to be used with gloves
- No.of keys (TOTAL 15KEYS): 0-9, *, #, Redial, Mute, Last Number Redial
- Hermetically sealed non-contact hook sensing switch improves system reliability
- Mounting: Wall/column/structural
APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.
OPTIONAL
- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
TECHNICAL SPECIFICATION
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
Unit Size: 246*339*126 mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
