Home > products > Explosion Proof Telephone > Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area

Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001

Model Number: JREX101

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T, PayPal

Supply Ability: 1000 sets per month

Get Best Price
Product Details
High Light:

ex proof telephone

,

explosion proof ip phone

Material:
Aluminium Alloy
Color:
Orange, Others Optional
Warranty:
2 Years
Power Supply:
Phone Line /PoE (Power Over Ethernet)
Weather Resistant:
IP66-IP67
Weight:
8 KG
Installation:
Wall Mounting
Unit Size:
246*339*126 (mm)
Vandal Resistant:
Yes
Phone Version:
Analogue/SIP
Material:
Aluminium Alloy
Color:
Orange, Others Optional
Warranty:
2 Years
Power Supply:
Phone Line /PoE (Power Over Ethernet)
Weather Resistant:
IP66-IP67
Weight:
8 KG
Installation:
Wall Mounting
Unit Size:
246*339*126 (mm)
Vandal Resistant:
Yes
Phone Version:
Analogue/SIP
Product Description

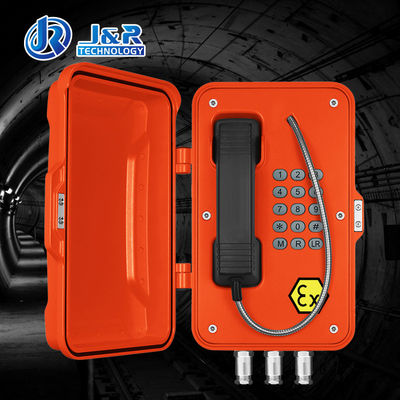

ATEX Explosion-proof Telephone for Zone 1 & 2 area



Model No:JREX101

The Explosion-proof Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



This model is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.



APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.

 Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area 0


MAIN FEATURES
- Standard Analog/SIP explosion-proof telephone

- Aluminum alloy die casting housing,

- With NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA
- Zone 1, Zone 2 and Zone 22
- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T6
- SIP or H323 protocols (Compatible with all PBX’S)
- Phone line/POE powered
- Fully configurable through any internet browser or the on-board display
- Handset with Noise canceling microphone,for effective communication from noisy areas
  (Armored SS cord stands up to rough treatment,optional for black curly cord )
- Completely programmable weatherproof keypad designed to be used with gloves
- No.of keys (TOTAL 15KEYS): 0-9,*, #, Redial, Mute, Last Number Redial
- Hermetically sealed non-contact hook sensing switch improves system reliability
- Built-in External Ringer that provides penetrating calling signal (85dbA@ 1meter)
- Mounting: Wall/column/structural
- Captive cover screws prevent loss during installation

Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area 1
This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22



TECHNICAL SPECIFICATION

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)




PACKAGE
Unit Size: 246*339*126mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area 2
Hazardous Areas ATEX Explosion - proof Telephone for Zone 1 & 2 area 3
