Acoustic Phone Booth
Created with Pixso.

Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction

Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction

Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction

Brand Name: J&R
Model Number: JR-TH-03
MOQ: 1 unit
Price: Reconsideration
Payment Terms: L/C,T/T
Supply Ability: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Robust Galvanised Metal
Noise Attenuation:
25 DB (SPL)
Size:
1100*1100*2400 (mm)
Color:
Grey, Or Optional
Application:
Outdoors, Off-Shore & On-Shore
Packaging Materials:
Pearl Cotton, Wooden Support
Net Weight:
300 KG
Installation:
Stand Alone
Packaging Details:
Pearl cotton, Wooden box
Supply Ability:
1000 units per month
Highlight:

soundproof phone booth

,

wall mounted telephone booth

Product Description
Vandal Resistant Telephone Kiosk: JR-TH-03 for Extremely Noisy Locations
This robust vandal-resistant telephone kiosk is specifically engineered for extremely noisy industrial environments. Manufactured from galvanized metal with comprehensive acoustic insulation, it provides a secure and quiet communication space in high-noise locations.
Product Overview
Product Name Acoustic Telephone Booth
Model No. JR-TH-03
Materials Robust Galvanised Metal
Size 1100*1100*2400 (mm)
Application Heavy Industries, Refineries, Airport, Oil & Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Offshore platforms, and other high noise industrial locations
Construction & Design Features
The booth features robust galvanized metal construction with three sides pre-lined with 50mm non-combustible, non-hygroscopic acoustic insulation. The roof cavity contains additional acoustic slab insulation. Two vandal-proof tempered glass windows provide natural lighting, while the internal telephone is securely mounted to the back panel.
Key Features
  • Standalone booth with robust metal construction
  • Durable galvanized plate body
  • Excellent low temperature impact properties
  • Maintenance free and corrosion resistant
  • Impervious to chemical attack
  • Noise reduction: up to 38dB with door, 25dB without door
  • Modern appearance with vandal-proof design
  • Weatherproof for outdoor use in harsh environments
  • Fire retardant and UV resistant
  • Easy fixing system for standalone installation
  • Optional colors and dimensions available
Technical Specifications
  • Dimensions: H2400mm * W1100mm * D1100mm
  • Weight: Approximately 300 kg
  • Standard Color: Silver gray (others available to order)
  • Body Material: Robust galvanised metal
  • Acoustic Insulation: 50mm tissue faced non-hygroscopic Rockwool
  • Window: Vandal-proof tempered glass
Accessories & Options
Each acoustic booth can be fitted with JR telephones suited to specific requirements, plus optional accessories including:
  • LED Strobe Light mounted on exterior top
  • Industrial speaker/ringer (up to 110 dB)
  • Internal lamp fixed on ceiling
Packaging Details
Unit size: 1100*1100*2400 mm
Wooden support size: 650*350*830 mm
Packaging materials: Pearl cotton, Wooden support
Net weight: 300 kg
Gross weight: 310 kg
Product Images

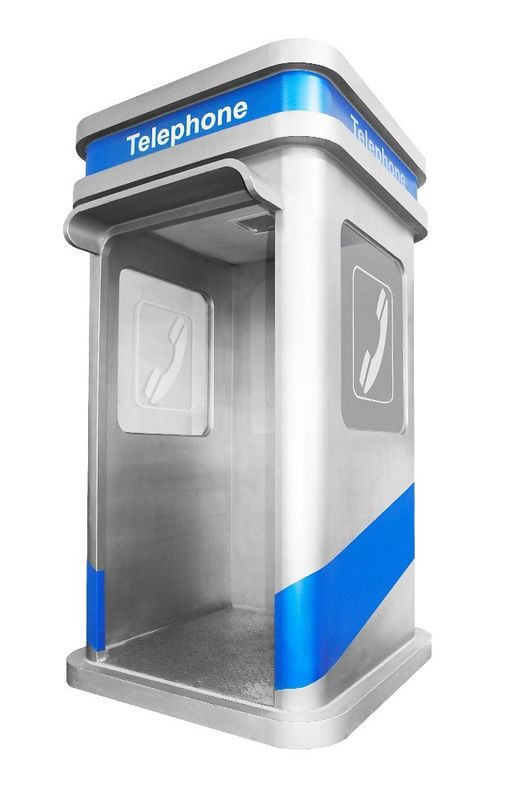

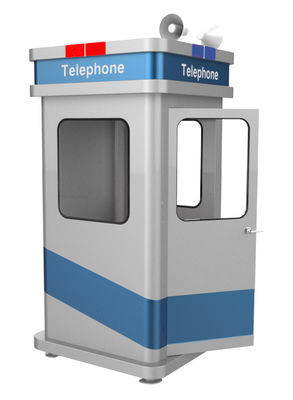

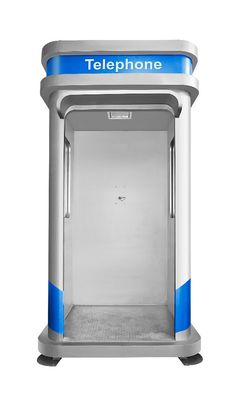

Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction 0 Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction 1 Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction 2 Vandal Resistant Acoustic Telephone Booth with 25 dB Noise Attenuation and Robust Galvanised Metal Construction 3
