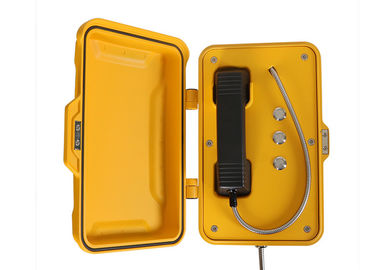

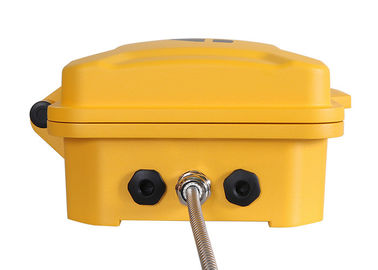

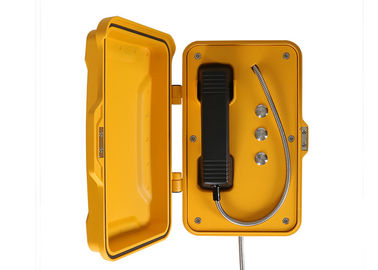

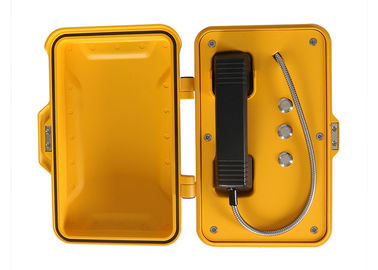

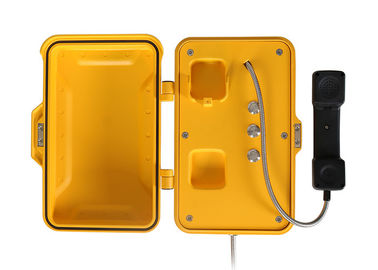

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside
SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside

Large Image :  SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR101-3B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Pearl cotton, Carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Color: Yellow Or Customized Material: Aluminum Alloy
Product Name: SIP Tunnel Industrial Emergency Weatherproof Resistant Telephone For Roadside Usage: Outdoor
Package: Pearl Cotton, Carton Modle: Analog/ SIP/ GSM/ 3G
Mounting: Wall /Pillar Mounted Ingress Protection Rating: IP66-IP67
Full Keypad: No Door Cover: Yes
Feature: Speed Dial Handset: Yes
Temperature: -30°C To +65°C OEM: Yes
Warranty: 2 Years
High Light:

weather resistant telephone

,

weatherproof telephone box

SIP Tunnel Industrial Emergency Weatherproof Resistant Telephone for Roadside



Product Description

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

JR101-3B with 3 button for speed dial, you can set up three number you need. And This phone with yellow color which are conspicuous or we can change the color which you need. This phone housed in weatherproof cast aluminum enclosure, it's durable and vandal proof.

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 0

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 1

Specification

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.

Standard Analogue phone/IP/SIP Phone

Vandal resistant handset and cord

Weather proof protection to IP67

Programmable for auto-dial

Wall mounting, simple installation

Inductive coupler fitted as standard for hard of hearing

Phone line powered(Analogue)

External power supply or PoE (SIP-VoIP)l

RJ45 Port for SIP connection

CE,FCC Rosh compliant

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 2




Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C





Application

Ideal for public place, park, home, heavy industry, ship, rail station, bank, large building or somewhere need a waterproof telephone etc.

SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 3

Feature

 Support SIP 2.0 (RFC3261)

 Codec: G.711A/u, G.7231 high/low, G.729, G.722

 Echo cancellation: Support G.168 and hand-free can support 96ms Supports full duplex

 SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

 DTMF:SIP info, DTMF Relay,RFC2833

 Call control features: Flexible dial map, support hot-line



Packing
Unit size 339*246*126 (mm)
Carton size 200*300*440 (mm )
Packaging materials Pearl cotton, Carton
Net weight 6KG
Gross weight 7KG
SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 4SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 5SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 6
Our Company
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.


SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 7SIP Tunnel Industrial Weatherproof Telephone Wall / Pillar Mounted For Roadside 8
