IP65 SIP Auto Dial Emergency Phone 65VDC Cold Rolled Steel

IP65 SIP Auto Dial Emergency Phone 65VDC Cold Rolled Steel

Brand Name:	J&R
Model Number:	JR210-SC-1B
MOQ:	1 Piece
Price:	US$249-US$359
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Size:

300*180*161(mm)

Color:

Red Or Customized

Material:

Cold Rolled Steel

Function:

Communication

Installation:

Wall Mounting

Ringer Volume:

90~95dB(A) At A Distance Of 1 M

Temperature:

Operating: -30°C To +65°C

Ingress Protection Rating:

IP54-IP65

Warranty:

2 Years

Net Weight:

4 Kg

Packaging Details:

J&R standard packing ,pearl cotton, carton

Supply Ability:

10000pcs per month

Highlight:

IP65 SIP Auto Dial Emergency Phone

65VDC Auto Dial Emergency Phone

Cold Rolled Steel Vandal Proof Telephone

Product Description

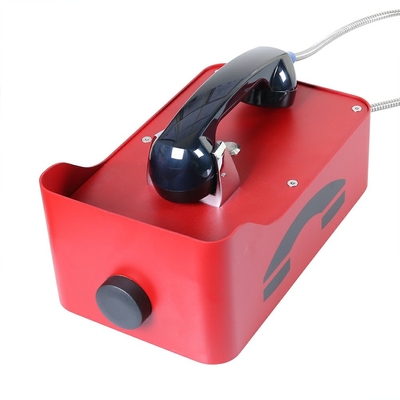

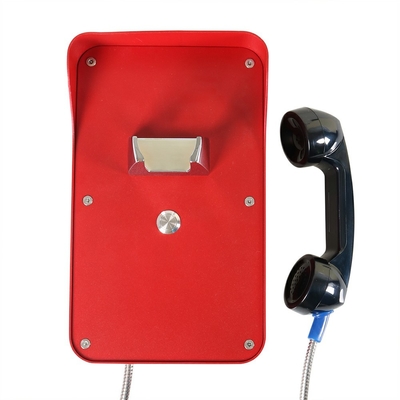

JR210-1B RED SIP Auto Dial Emergency Phone Vandal Proof Handset TelePhone

Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),

Unit size:300*180*161(mm)

Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting

Heavy Duty, Vandal Resistant Metal Telephones

Standard Analogue phone or VoIP phone
Robust housing, constructed of cold rolled steel with powder coated
One button for speed dial, sturdy and durable
Wall mounting, simple installation
Weather proof protection IP55-IP65
Programmable for speed dial, easy to operate
Phone line powered (Analog)
External Power supply or PoE (SIP phone)
Connection type RJ45 port for SIP phone
Inductive coupler fitted as standard for hard of hearing
CE, FCC, ISO9001, ROSH compliant

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24VDC to 65VDC
Supply Current	20 mA DC to 100mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12VDC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer Volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection Type	IP66 as per EN60529
Operating Temperature	-30°C to +70°C
Storage Temperature	-40°C to +75°C

Application

The Handset Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.

Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
