Vandal Resistant Telephone
Created with Pixso.

Durable Stainless Steel Corded Wall Phone With Broadcasting Loud Speaker

Durable Stainless Steel Corded Wall Phone With Broadcasting Loud Speaker

Brand Name: J&R
Model Number: JR208-CB-HB
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Stainless Steel
Weather Protection:
IP55-IP65
Vandal Resistant:
Yes
Flush Mounted:
Yes
Communication Type:
Full Duplex
Auto-dial:
Yes
Armored Cord:
Yes
Warranty:
2 Years
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

vandal resistant phone

,

vandal proof intercom

Product Description

In wall mounting Rugged Industrial Telephone with Broadcasting for Emergency



The Flush Emergency Phone Auto-Dial Handset Telephone for clean room Railways Phons is based on a stainless steel faceplate and provide a loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

-Standard Analog Phone,VOIP/SIP Phone,GSM/3G Phone
-Robust construction, Vandal resistant
-Stainless steel armoured handset cord
-Weatherproof and corrosion resistant handset

-Weather protection IP54-IP65
-Tamper resistant fixings
-Flush mounted, Simple installation
-Fast-fit terminal connection

-Auto Dial, without Keypad
-Can be programmed remotely by tone phone or locally via keypad
-Non-volatile memory
-Telephone line powered
-CE,FCC, RoHS Compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m

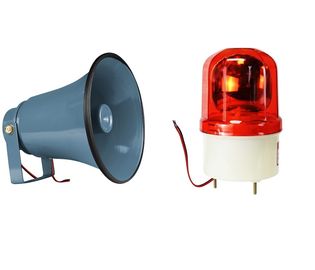

- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



PACKAGE

Unit size: 190*280*124 (mm)
Carton size: 340 *240 *160 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2.4 KG
Gross weight: 3 KG
Durable Stainless Steel Corded Wall Phone With Broadcasting Loud Speaker 0
Durable Stainless Steel Corded Wall Phone With Broadcasting Loud Speaker 1
