| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR208-CB |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 10000pcs per month |
| Material: | Stainless Steel | Color: | Color Optional |
|---|---|---|---|
| Handset Material: | ABS Material Handset With Stainless Steel Spiral Cord | Keypad: | Weather Sealed Tactile Digital Keypad |
| Operating Temperature: | -30°C To +65°C | Weather Resistance: | IP55-IP65 |
| Ringing Tone: | Shrill Warble Tone 90 DBA @ 1 Metre Typical | Hook Switch: | Electronic / Magnetic With No Visible Moving Parts |
| Unit Size: | 280*190 *124(mm) | Packaging Materials: | Pearl Cotton, Carton |
| Net Weight: | 2.5KG | Gross Weight: | 3.5KG |
| High Light: | Stainless Steel Flush Mounted Emergency Phone,vandal resistance auto dial telephone,digital keypad Flush Mounted Emergency Phone |
||

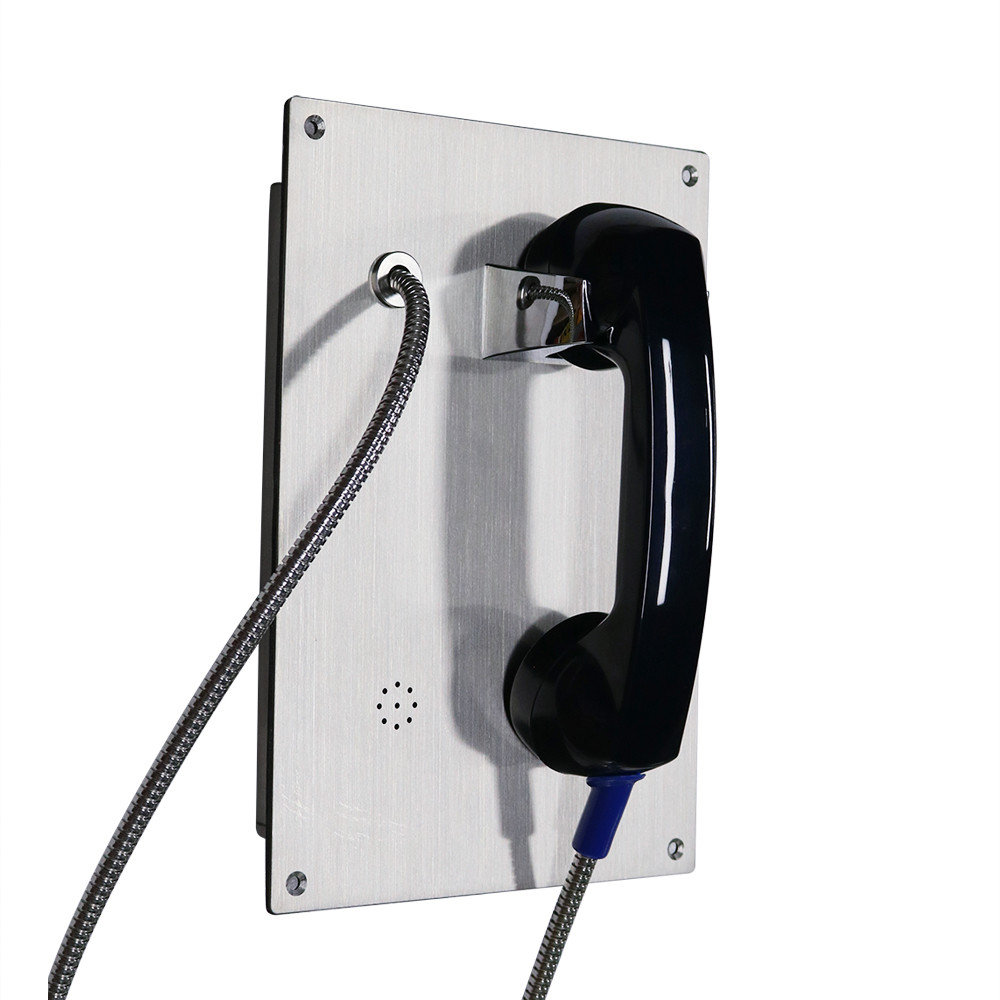

Flush Mounted Emergency Phone Auto-Dial Handset Telephone
Flush Mounted Emergency Phone Auto-Dial Handset Telephone is compatible with most of SPC exchange. The hook of telephone handset is made of high grade zinc alloy and controlled by intelligent magnetic induction switch.
Product Specification
Flush Mounted Emergency Phone Auto-Dial Handset Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Features
★ Hook Switch Intercom Telephone System
★ Hotline telephone, atomatic dialing after lifting handset
★ Built-in loudspeaker, increase volume
★ 304 stainless steel panel, vandal resistance
★ Housing has grounding device with electromagnetic shielding characteristic
Applications
Flush Mounted Emergency Phone Auto-Dial Handset Telephone is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Packing
| Unit Size | 280 *190 *124 (mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.5 KG |
| Gross Weight | 3.5 KG |
