Anti Vandal IP Hotline Industrial Weatherproof Telephone

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

Anti Vandal IP Hotline Industrial Weatherproof Telephone

Anti Vandal IP Hotline Industrial Weatherproof Telephone
Anti Vandal IP Hotline Industrial Weatherproof Telephone Anti Vandal IP Hotline Industrial Weatherproof Telephone Anti Vandal IP Hotline Industrial Weatherproof Telephone Anti Vandal IP Hotline Industrial Weatherproof Telephone Anti Vandal IP Hotline Industrial Weatherproof Telephone Anti Vandal IP Hotline Industrial Weatherproof Telephone

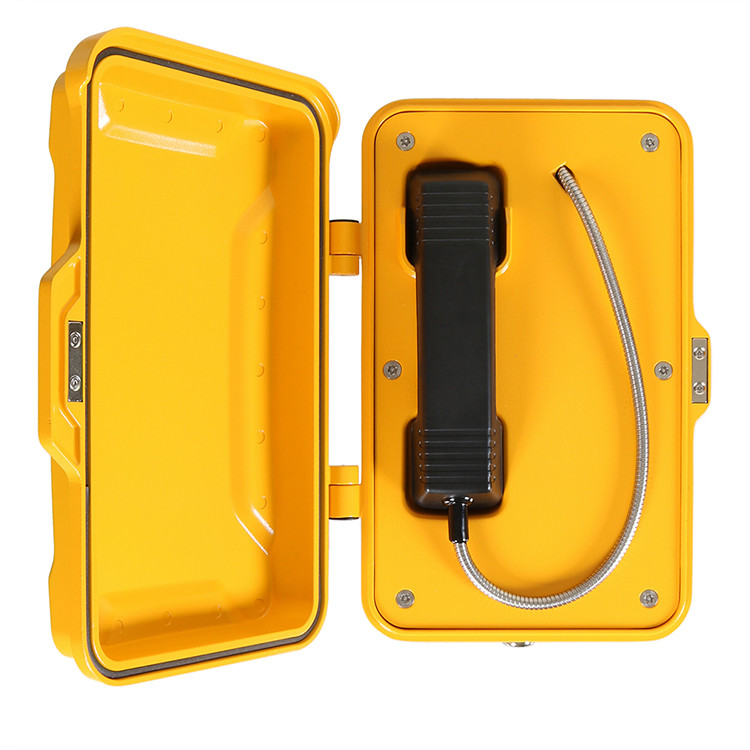

Large Image :  Anti Vandal IP Hotline Industrial Weatherproof Telephone

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR101-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Product Name: Highway Emergency Call Box Industrial Waterproof Telephone For Roadside Material: Die-casting Aluminum Alloy
Function: SOS Main Chip: Audiocodec
Package: Pearl Cotton, Carton Modle: Analog/ SIP/ GSM/ 3G
Mounting: Wall /Pillar Mounted Ingress Protection Rating: IP66-IP67
Full Keypad: Yes Door Cover: Yes
Handset: Yes Temperature: -30°C To +65°C
OEM: Yes Warranty: 2 Years
Feature1: Hotline Feature2: Anti Vandal
Net Weight: 6kg Gross Weight: 7kg
High Light:

SOS Industrial Waterproof Phones

,

Hotline IAnti Vandal Telephone






Detailed Presentation


JR101-CB Hotline Industrial Waterproof Phones

JR101-CB IP Hotline Industrial Waterproof Phones has eye-catching yellow husing color by default, which is easy to spot. The aluminum alloy die-casting shell of JR101-CB can withstand a great deal of punishment. The imported seal ring is placed inside to extend service life and ingress protection rating is up to IP67.

Even in the hazardous areas, IP Hotline Industrial Waterproof Phones may offer reliable voice and high quality communication.



 Casing Material

Die cast aluminium, epoxy powder coated

 Colors

Yellow, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Keypad

No keypad

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance IP67
 Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
 Hook switch Electronic / magnetic with no visible moving parts
 M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
 Weight Up to 7 kg depending on option





IP Hotline Industrial Waterproof Phones


Front & Top


Back & Bottom















Product Description



IP Hotline Industrial Waterproof Phones



Heavy Duty, Vandal Resistant Metal Telephones












Technical Specification



IP Hotline Industrial Waterproof Phones



Heavy Duty, Vandal Resistant Metal Telephones



Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +70°C
  Storage Temperature -40°C to +75°C











Features



IP Hotline Industrial Waterproof Phones



Heavy Duty, Vandal Resistant Metal Telephones





 Waterproof upper cover - built in imported rubber ring

Automatically detection -  send test reports to the spcified IP by opening the lock

Imported ABS and PC composite handset - vandal resistant

6 stainless steel tamper screws - to prevent theft and tampering

Ingress protection rating - up to IP67

Easy to use - automatic dial-up while pick up handset













Applications



IP Hotline Industrial Waterproof Phones



JR101-CB IP Hotline Industrial Waterproof Phones more commonly used in airport,railway, mine, underground pipe gallery, tunnel, sewage plant, power plant, steel plant, food products factory and so on



Rugged Outdoor Weatherproof Telephone













Packing & Delivery



IP Hotline Industrial Waterproof Phones



Heavy Duty, Vandal Resistant Metal Telephones



  Unit Size 339 *146 *126 (mm)
  Carton Size 200 *300 *440 (mm)
  Packaging Materials Pearl cotton, carton
  Net Weight 6 KG
  Gross Weight 7 KG



Heavy Duty, Vandal Resistant Metal Telephones



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated













Customised Accessories



IP Hotline Industrial Waterproof Phones



Heavy Duty, Vandal Resistant Metal Telephones



J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



HOOK FUNCTION: Magnetic hooks for choice

KEYBOARD SHAPE: Round buttons and square buttons for choice

INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

HADSET CORD: Black curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.











Our Company



IP Hotline Industrial Waterproof Phones

Heavy Duty, Vandal Resistant Metal Telephones



J&R Technology offers a wide variety of special telephones and unique customs services to customers. Our telephone is suitable for all IP systems, and we have provided many customers with excellent emergency system solutions and customized telephone service, which is very mature in the manufacturing of the telephone.











FAQ



IP Hotline Industrial Waterproof Phones



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: When can I receive your quotation?

A: Within 12 hours



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
