| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR315-SC |
| Minimum Order Quantity: | 1 set |
| Price: | US$799 ~ US$999 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 1000 sets per month |
| Color: | Yellow,Grey,Blue Or Customization | Material: | Stainless Steel For Phone Unit, Cold Rolled Steel For Pillar |
|---|---|---|---|
| Power Supply: | PoE | Weather Resistant: | IP65 |
| Vandal Resistant: | Yes | Installation: | Pillar Mounting |
| Size: | 1800*300 *90 (mm) | Net Weight: | 45 KG |
| Warranty: | 2 Years | ||
| High Light: | campus emergency phones,emergency call stations |
||

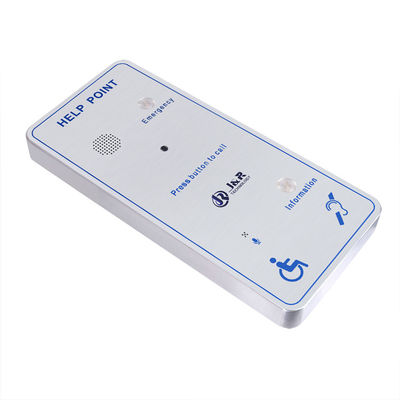

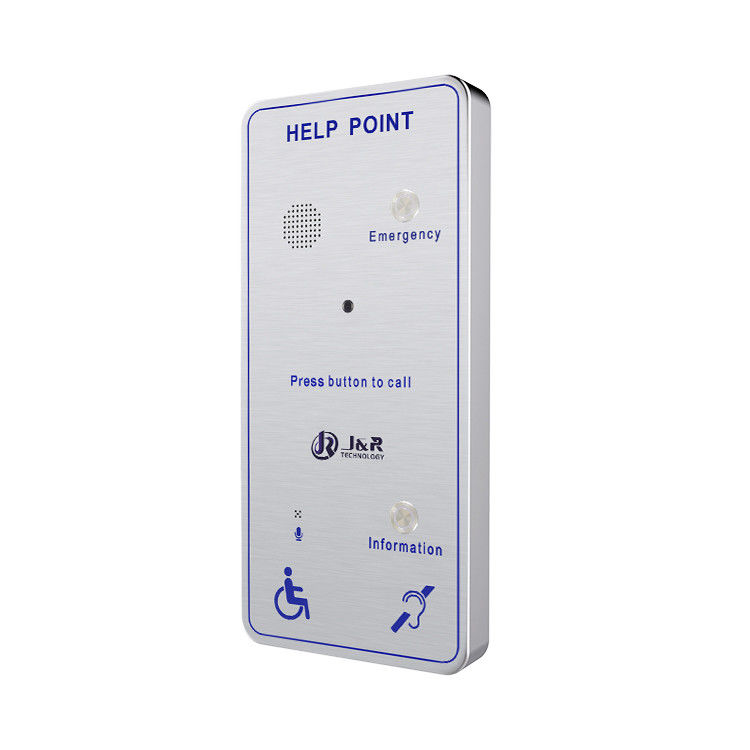

SIP Video Stainless Steel Voice Emergency Telephone with Camera for Metro,Campus and Roadside
The Handsfree SOS Telephone with camera is designed to meet the needs of client who experience loss through vandalism.
Product Details
┅┅┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
JR315-SC is housed in cold rolled steel box and manufactured to a high standard, this telephone offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Besides, this kind of Help Point Telephone is extremely easy to install.
The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
| Casing Material | Brushed Stainless steel help point and CRS structure for the pillar |
| Colors | Brushed Stainless Steel Optional :RED, YELLOW, GREY |
| Handset Material | No handset |
| Keypad | No keypad |
| Temperature | Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 90 dB A at 1 metre typical |
| Hook switch | Hands free Operation |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 45kg depending on option |
Technical Specification
┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
| Camera | |
| Video Codec | H.264 HP,MPEG4 SP,MJPEG |
| Resolution Ratio | 1,280*720@20fps |
| Sensitivity | 0.5Lux,1.0V/lux-sec (550nm) |
| Viewing angle | 135'(H),109'(V) |
| Video Compression Output | 16Kbps - 2Mbps |
| FPS | 10-30fps |
| D-Range | 71dB(SNR MAX = 42.3dB) |
| SIP-VoIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| DTMF | SIP info, DTMF Relay,RFC2833 |
| Call control features | Flexible dial map, support hot-line |
| Echo cancellation | Support G.168 and hand-free can support 96ms |
| Analogue | |
| Dialing | MF (tone) |
| Power supply | Drawn from telephone line |
| Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
| Programming | Can be programmed as an auto-dial phone |
Features
┅┅┅┅┅┅┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
∝ Finished in contrasting colours, with a raised 32 mm button
∝ Raised text, Induction Loop facility for hearing impaired
∝ Dual purpose design for surface or pillar mounting, simple installation
∝ Dual button autodial for emergency call
∝ External power supply or PoE (SIP)
∝ Hands-free loudspeaking communications for any public area,with Media converter
Packing & Delivery
┅┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
| Help Point Unit Size | 650 *300 *60 (mm) |
| Pillar Size | 1800 (H) *300 (W) (mm) |
| Packaging materials | pearl cotton, carton |
| Net weight | 45 KG |
| Gross weight | 50 KG |
| Port | Shenzhen | |||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Pieces) | 1 | 2-200 | >200 |
| Est. Time(days) | 1 | 20 | To be negotiated | |
Our Services
┅┅┅┅┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
∽ ODM & OEM products or solutions
∽ Sample order is greatly welcomed.
∽ We will reply your inquiry within 12 hours
∽ Update the productive process and show the packing details
∽ After delivered the goods, we will track the products for you once every two days, until you get the products.
∽ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
Our Company
┅┅┅┅┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
CHOOSE J&R TRCHNOLOGY • CHOOSE RELIBLE TALKS
Cooperation Partner
┅┅┅┅┅┅┅┅┉∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
FAQ
┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┉∞∞∞∞┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅
SIP Video Stainless Steel Voice Emergency Telephone with Camera
for Metro,Campus and Roadside
Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
