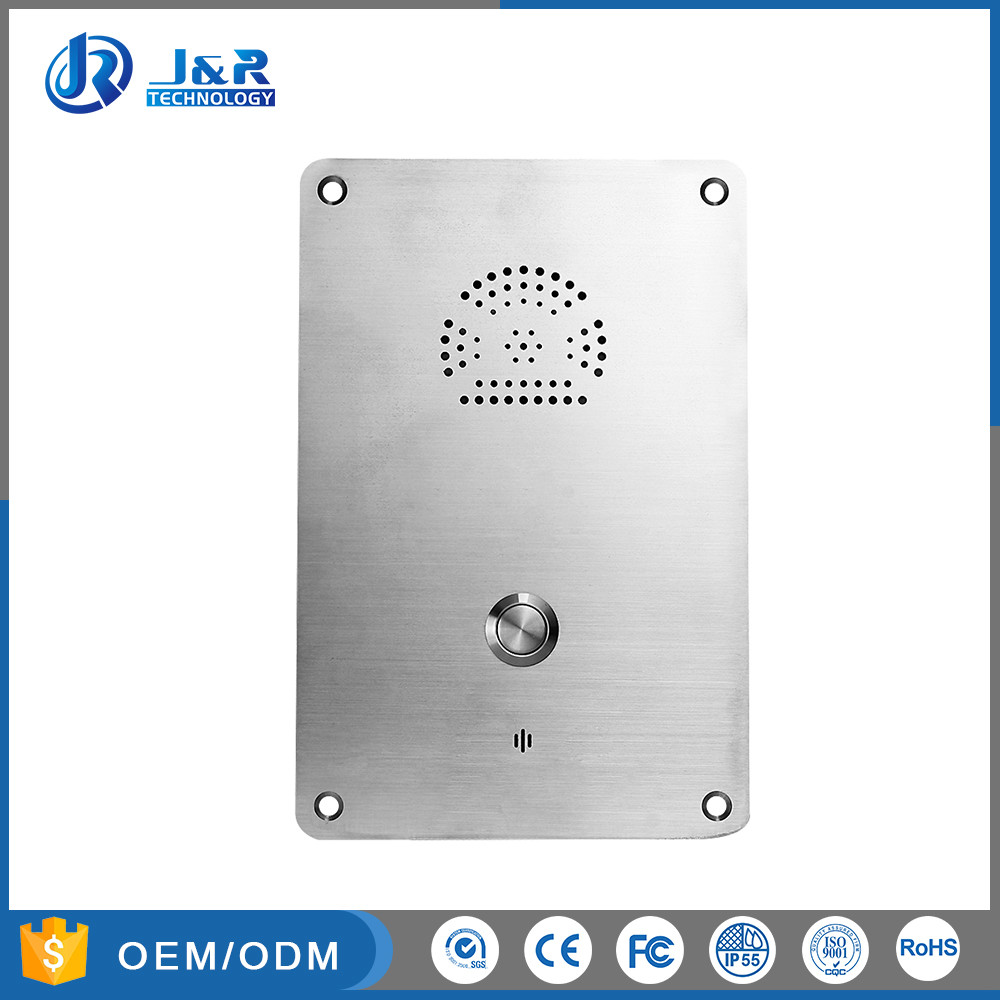

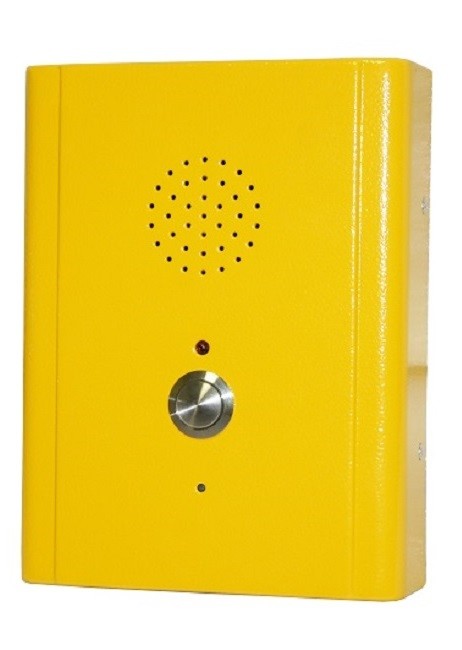

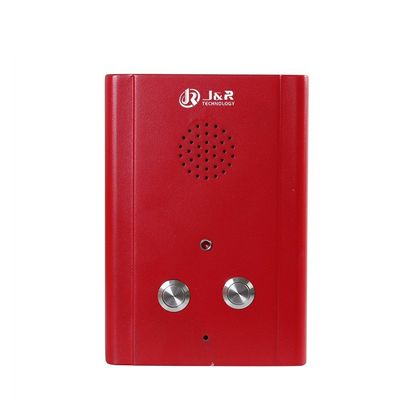

Outdoor / Indoor SIP Call Box Hands Free Emergency Weather Resistant Telephone

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR313-2B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Color: Red, Yellow Or Customization Material: Cold Rolled Steel
Weather Protection: IP65 Button: Stainless Steel
Handsfree: Yes Vandal Resistant: Yes
High Light:

outdoor sip phone

,

sip outdoor intercom


Product Description

  Outdoor & Indoor Hands Free Emergency Weather Resistant Telephone



Product Description




     The Help Point telephone are vandal and weather resistant, providing hands-free loudspeaking  communications for any public ares.

   • The internal components are protected by a weather resistant enclosure behind the faceplate.

   • It is finished in contrasting colors with a raised 32mm button.

   • This telephone contains 2 buttons auto-dailer and the indutive loop is stabdard.







Casing Material

Cold rolled steel body

Colors

RED, YELLOW, GREY

Handset Material

No handset

Keypad

No keypad

Temperature

Operating: -30°C to +70°C

Storing: -40°C to +75°C

Weather Resistance

IP65

Ringing Tone

Shrill warble tone 80 dBA @ 1 metre typical

Hook switch

Electronic / magnetic with no visible moving parts

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

Up to 1 kg depending on option









Features




 ►Constructed in robust steel, vandal and mark resistant

 ►Can be used on most PBX system as an extension phone

 ►Voice-switched (VOX) semi-duplex or full-duplex operation

 ►Tone dialling (DTMF)

 ►Speech optimisation in noisy environment

 ►External power supply or PoE (SIP)



Outdoor / Indoor SIP Call Box Hands Free Emergency Weather Resistant Telephone 0









Technical Specifications of JR313-2B Help Point Telephone






Analogue Version
Power Supply  Telephone Line Powered
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume 80 dB (A) at 1m distance
Dialing Method

DTMF mode in accordance with ITU-T

recommendation Q.23.

Communication Type Full duplex



SIP Version
Power Supply PoE or 12V DC
Power Consumption Idle: 1.5w  -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume 90~95dB (A) at 1m distance



3G Version
Power Supply 12V DC
Power Consumption Idle: 0.3W  -Active: 1.5W
Communication Type Full deplex
Ringer Volume 90~95dB (A) at 1m distance
Program Method Remote programming by SMS









Packing






Unit size

170 *130 *60(mm)

Carton size

200 *140 *100( mm )

Packaging materials

pearl cotton, carton

Net weight

0.8 KG

Gross weight

1 KG



Outdoor / Indoor SIP Call Box Hands Free Emergency Weather Resistant Telephone 1





Our Company


    J&R is China based design and manufacturer of rugged communications equipment.

    Our telephones and systems work, and last, in environments where regular products wouldn’t.(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G/4G version) .

    After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.

    We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
