| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR315-SC |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Phone Material: | Stainless Steel | Pillar MaterialWeather Resistant: | IP65 Cold Rolled Steel |
|---|---|---|---|
| Power Supply: | PoE | Color: | Blue, Grey |
| Size: | 1800*300 *90 (mm) | Net Weight: | 45 KG |
| Warranty: | 2 Years | Weather Resistant: | IP65 |
| High Light: | sos emergency phone,highway emergency phone |
||

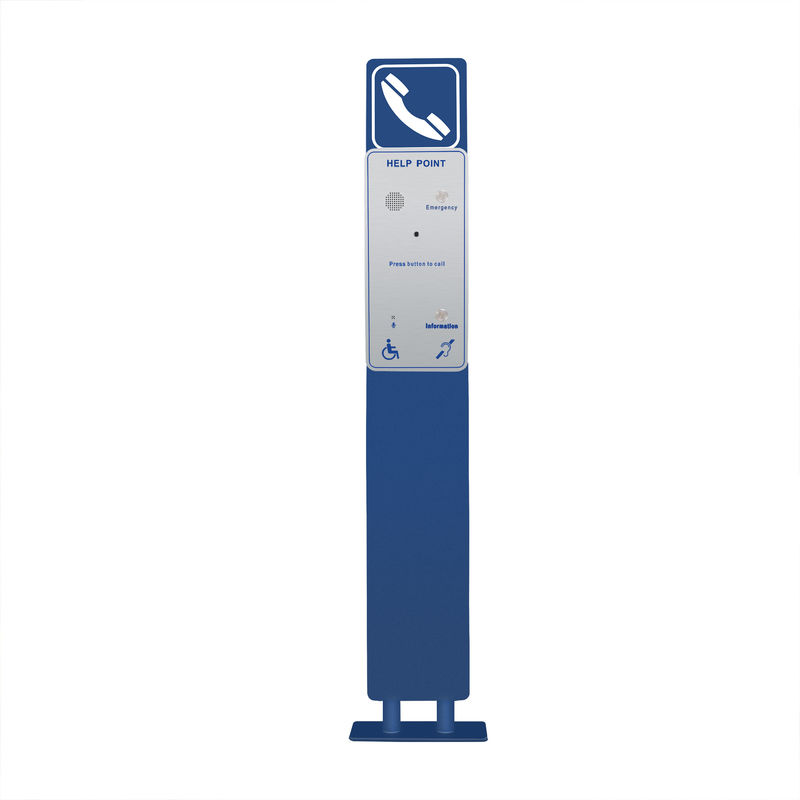

Metro / Subway Station VoIP Emergency telephone set , SOS help point Call station
The Handsfree SOS Telephone with camera is designed to meet the needs of client who experience loss through vandalism. Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Applications
Metro / Subway Station VoIP Emergency telephone set , SOS help point Call station.This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
Emergency telephone set , SOS help point Call station Main Features:
- SOS-Video Pillar
- Standard SIP Phone
- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired
- Hands-free loudspeaking communications for any public area,with Media converter
- Dual purpose design for surface or pillar mounting, simple installation
- Robust/Weather resistant: IP65
- Dual button autodial for emergency call
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- CE, FCC, RoHS, ISO9001 compliant
Camera Features of Intrinsically Safe Telephone
Video Codec: H.264 HP,MPEG4 SP,MJPEG
Resolution Ratio: 1,280*720@20 fps
Sensitivity: 0.5 Lux,1.0V/lux-sec (550nm)
Viewing angle: 135'(H),109'(V)
Video Compression Output: 16Kbps - 2Mbps
FPS: 10-30 fps
D-Range: 71dB (SNRMAX = 42.3dB)
Emergency telephone set Technical Specifications
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Help Point Unit Size: 650 *300 *60 (mm)
Pillar Size:1800 (H) *300 (W) ( mm )
Packaging materials: pearl cotton, carton
Net weight: 45 KG
Gross weight: 50 KG
J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and cost-effective solution to support you with the project requirement and marketing proposal.
