Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR302-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Color: Grey
Warranty: 2 Years Weather Protection: IP65
Button: Stainless Steel Handsfree: Yes
Vandal Resistant: Yes Unit Size: 210 *140 *50 (mm)
Weight: 4 KG
High Light:

lift intercom phone

,

elevator intercom phones


Product Description

Stainless Steel Elevators Intercom telephone,Anti-vandal Call Box for Elevators

The Hands free emergency  call box is designed to meet the needs of client who experience loss through vandalism.

Housed in stainless steel box and manufactured to a high standard, this SOS call box offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.



Stainless Steel Elevators Intercom telephone MAIN FEATURES

l Standard Analogue phone or SIP phone

l Robust housing, constructed of stainless steel

Vandal resistant metal button

Hands free operation



l One button for emergency call

On wall mounting, simple installation

l Weather proof protection: up to IP55



External power supply or PoE (SIP)

RJ45 Port for SIP connection

4 X Tamper proof screws for mounting

CE, FCC, RoHS, ISO9001 compliant



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C




APPLICATIONS
Stainless Steel Elevators Intercom telephone
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



TECHNICAL PARAMETERS

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)


PACKAGE
Unit size: 210 *140 *50 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 3.5 KG
Gross weight: 4 KG

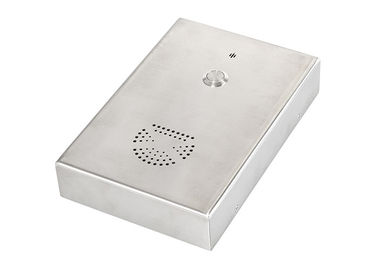

Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type 0

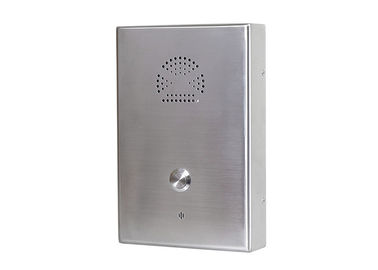

Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type 1

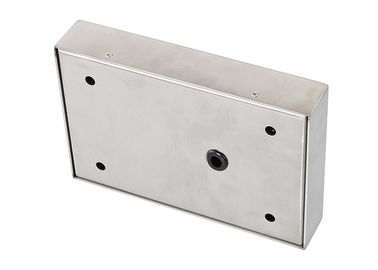

Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type 2

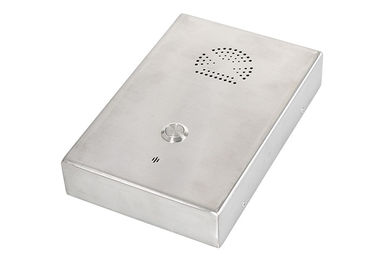

Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type 3

Our Company

J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.

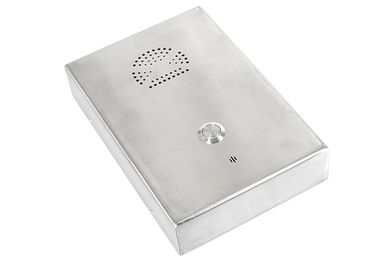

Anti Vandal Elevator Emergency Phone Call Box Stainless Steel Elevators Intercom Type 4
